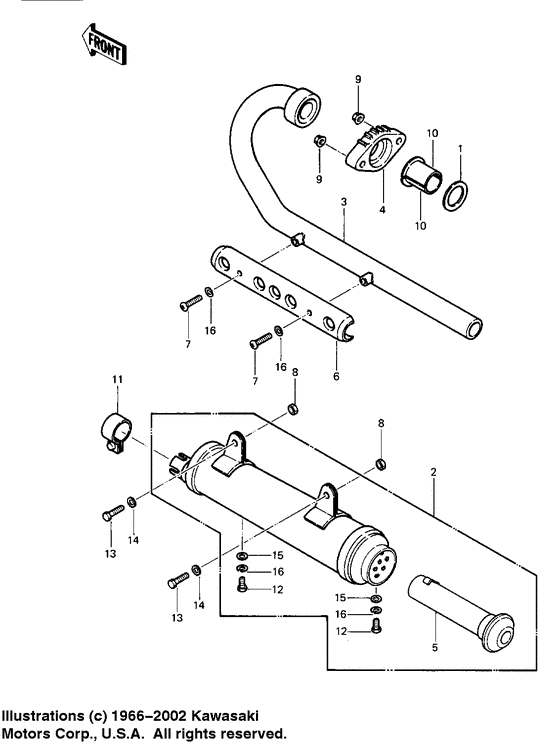

Muffler Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-P1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11009-1866 GASKET,EXHAUST PIPE HGasket,exhaust pipe h; |
11009-1866 |
from US $4.91 |
||
|
2
|
2
18001-1452
MUFFLER
|
18001-1452 |
— | ||
|
3
|
3
18049-1153
PIPE-EXHAUST
|
18049-1153 |
— | ||
|
4
|
4
18069-1014 HOLDER EXHAUST PIPEHolder exhaust pipe; |
18069-1014 |
from US $12.83 |
||
|
5
|
5
49099-1223 BAFFLE-PIPE MUFFLER |
49099-1223 |
US $63.65 |
||
|
6
|
6
49107-1004
COVER-EXHAUST PIPE,BL
Cover-exhaust pipe,bl; |
49107-1004 |
— | ||
|
7
|
7
92009-1054 SCREW,6X6.7 |
92009-1054 |
from US $1.96 |
||
| replacement | |||||
|
7
|
7
92172-0104 SCREW,6X6.7 |
92172-0104 |
from US $1.40 |
||
|
8
|
8
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
9
|
9
92015-1143 NUT-8MMNut-8mm; |
92015-1143 |
from US $0.99 |
||
|
10
|
10
92027-264 COLLAR,EXHAUST PIPECollar,exhaust pipe; |
92027-264 |
from US $3.01 |
||
|
11
|
11
92037-1115
CLAMP,MUFFLER CONNECT
Clamp,muffler connect; |
92037-1115 |
— | ||
|
12
|
12
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
12
|
12
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
13
|
13
115G0820 BOLT-SMALL-UPSETBolt,8x20; |
115G0820 |
US $48.10 |
||
| replacement | |||||
|
13
|
13
115BA0820 BOLT-SMALL-UPSETBolt,8x20; |
115BA0820 |
from US $1.12 |
||
|
14
|
14
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
14
|
14
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
15
|
15
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
15
|
15
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
16
|
16
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
16
|
16
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
