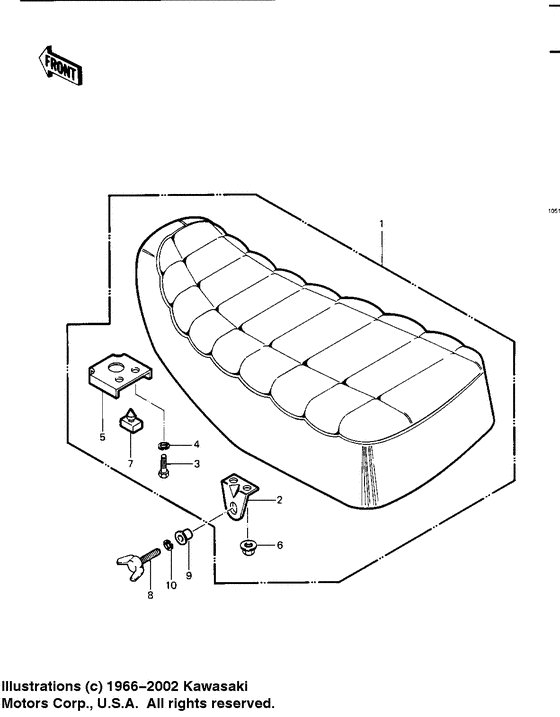

Seat Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-P1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53001-4009
SEAT-ASSY,WHITE LOGO
Seat-assy,white logo; |
53001-4009 |
— | ||
|
2
|
2
11034-1617 BRACKET |
11034-1617 |
US $2.66 |
||
|
3
|
3
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
3
|
3
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
4
|
4
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
4
|
4
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
27012-4008 HOOK,SEATHook,seat; |
27012-4008 |
US $7.81 |
||
|
6
|
6
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
6
|
6
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
7
|
7
92075-099 DAMPER RUBBERDamper rubber; |
92075-099 |
from US $3.33 |
||
|
8
|
8
92003-199
BOLT,CLNR ELEMENT
Bolt,clnr element; |
92003-199 |
— | ||
|
9
|
9
92027-4020 COLLAR,L=5Collar,l=5; |
92027-4020 |
from US $2.49 |
||
|
10
|
10
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
10
|
10
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
