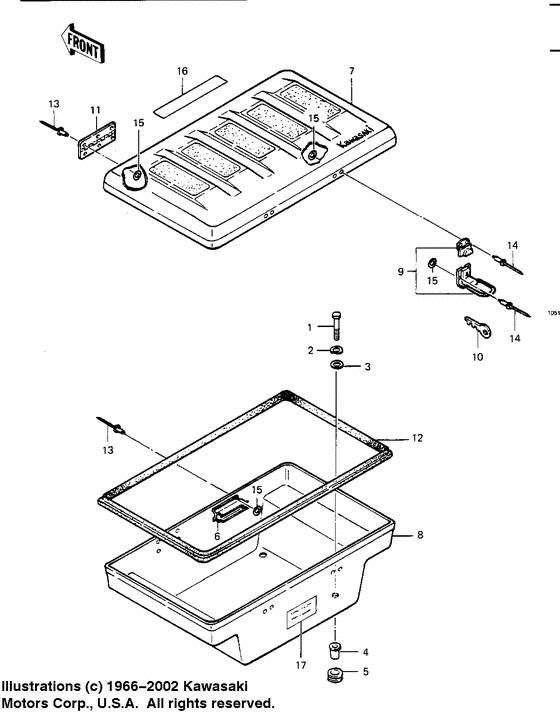

Trunk Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-P1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
115G0840
BOLT-SMALL-UPSET
Bolt,8x40; |
115G0840 |
— | ||
| replacement | |||||
|
1
|
1
115BA0840 BOLT-SMALL-UPSETBolt,8x40; |
115BA0840 |
from US $1.09 |
||
|
2
|
2
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
2
|
2
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
3
|
3
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
3
|
3
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
4
|
4
92027-1134 COLLAR,FUEL TANK FITTCollar,fuel tank fitt; |
92027-1134 |
from US $8.15 |
||
|
5
|
5
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
5
|
5
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
6
|
6
13091-4020 HOLDER,CASE-ASSYHolder,case-assy; |
13091-4020 |
US $17.02 |
||
|
7
|
7
14025-4028-8C COVER-TRUNK.J-WHITE |
14025-4028-8C |
US $158.74 |
||
|
8
|
8
32099-4017-8C CASE-TRUNK.J-WHITE |
32099-4017-8C |
US $274.70 |
||
|
9
|
9
49031-4002
LATCH
|
49031-4002 |
— | ||
|
10
|
10
27008-4001
KEY SET,POLICE SADDLE
Key set-police sddlbg; |
27008-4001 |
— | ||
| replacement | |||||
|
10
|
10
27008-5501
KEY SET,POLICE SADDLE
Key set-police sddlbg; |
27008-5501 |
— | ||
|
11
|
11
53009-4005 HINGE,TRUNKHinge,trunk; |
53009-4005 |
US $9.41 |
||
|
12
|
12
92093-4009 SEAL-TRUNK |
92093-4009 |
US $3.22 |
||
|
13
|
13
92039-4007
RIVET
|
92039-4007 |
— | ||
|
14
|
14
92039-4006 RIVET |
92039-4006 |
from US $0.83 |
||
|
15
|
15
92022-4017 WASHER |
92022-4017 |
from US $0.62 |
||
|
16
|
16
56040-4008
LABEL-NO PASSENGER
|
56040-4008 |
— | ||
|
17
|
17
56040-4012 LABEL-WARNING |
56040-4012 |
US $1.57 |
||
