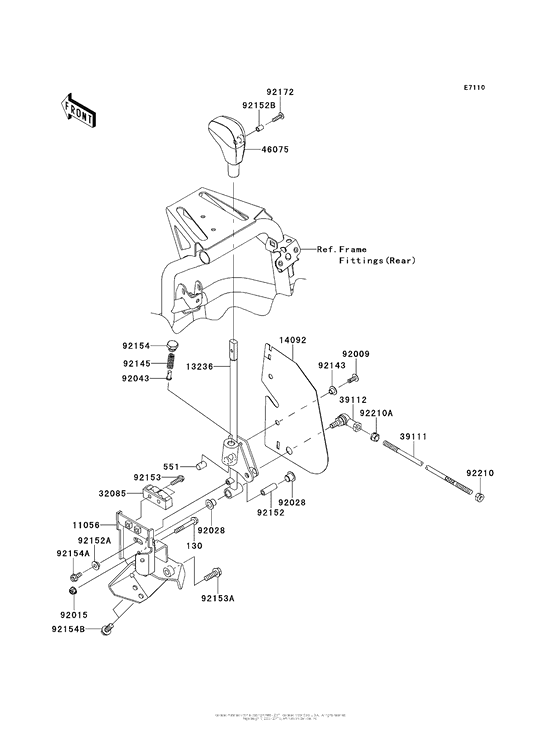

Control Diagram Kawasaki KRF750 Teryx 750 FI 4X4 LE
- Model code
- KRF750RDF
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx 750 FI 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0645 BOLT-FLANGED,6X45 |
130CA0645 |
from US $1.27 |
||
|
551
|
551
551R1016 PIN-DOWEL,10X16 |
551R1016 |
from US $3.11 |
||
|
11056
|
11056
11056-2058 BRACKET,SHIFT |
11056-2058 |
from US $62.06 |
||
|
13236
|
13236
13236-0728 LEVER-COMP |
13236-0728 |
from US $77.83 |
||
|
14092
|
14092
14092-1045 COVER,CONTROL LEVER |
14092-1045 |
from US $12.73 |
||
|
32085
|
32085
32085-0731 STOPPER |
32085-0731 |
from US $5.44 |
||
|
39111
|
39111
39111-0040 ROD-TIE |
39111-0040 |
from US $9.95 |
||
|
39112
|
39112
39112-0017 RODEND-TIE |
39112-0017 |
from US $29.72 |
||
|
46075
|
46075
46075-0569 GRIP |
46075-0569 |
from US $16.65 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92028
|
92028
92028-1507 BUSHING |
92028-1507 |
from US $2.65 |
||
|
92043
|
92043
92043-092 PIN-BRAKE CABLE FIT |
92043-092 |
from US $2.74 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92145
|
92145
92145-0940 SPRING |
92145-0940 |
from US $1.71 |
||
|
92152
|
92152
92152-1518 COLLAR,6.0X10X30 |
92152-1518 |
from US $3.11 |
||
|
92152A
|
92152A
92152-1535 COLLAR,6.15X10.15X6 |
92152-1535 |
from US $1.74 |
||
|
92152B
|
92152B
92152-1545 COLLAR,5.6X8X10.5 |
92152-1545 |
from US $1.27 |
||
|
92153
|
92153
92153-1114 BOLT,M6X20 |
92153-1114 |
from US $1.11 |
||
|
92153A
|
92153A
92153-1768 BOLT,FLANGED,8X25 |
92153-1768 |
from US $1.90 |
||
|
92154
|
92154
92154-0197 BOLT,12X10 |
92154-0197 |
from US $1.56 |
||
|
92154A
|
92154A
92154-0482 BOLT,FLANGED,6X14 |
92154-0482 |
from US $0.63 |
||
|
92154B
|
92154B
92154-0885 BOLT,FLANGED,8X20 |
92154-0885 |
from US $0.94 |
||
|
92172
|
92172
92172-2081 SCREW,5X20 |
92172-2081 |
from US $0.32 |
||
|
92210
|
92210
92210-1242 NUT,RH,THREAD 8MM |
92210-1242 |
from US $1.11 |
||
|
92210A
|
92210A
92210-1284 NUT,LH,THREAD 8MM |
92210-1284 |
from US $1.24 |
