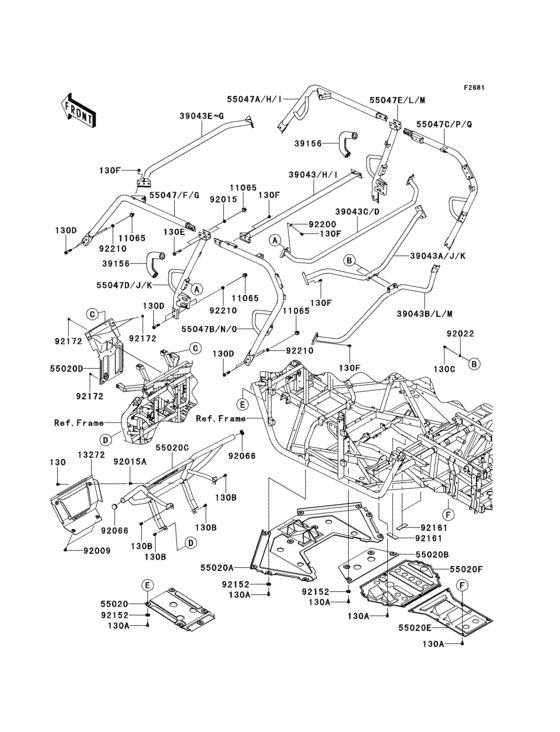

Guards/cab frame(1/2) Diagram Kawasaki KRT750 Teryx4 750 4X4
- Model code
- KRT750ADF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AB0614 BOLT-FLANGED,6X14 |
130AB0614 |
from US $1.43 |
||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
130B
|
130B
130BA1016 BOLT-FLANGED,10X16 |
130BA1016 |
from US $1.40 |
||
|
130C
|
130C
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
130F
|
130F
130CB1014 BOLT-FLANGED,10X14 |
130CB1014 |
from US $1.40 |
||
|
11065
|
11065
11065-0751 CAP |
11065-0751 |
from US $1.40 |
||
|
39043J
|
39043J
39043-0330-16I CROSSMEMBER-COMP,RR,U |
39043-0330-16I |
US $114.73 |
||
| replacement | |||||
|
39043J
|
39043J
39043-0011-16I CROSSMEMBER-COMP,RR,U |
39043-0011-16I |
from US $114.73 |
||
|
39043L
|
39043L
39043-0331-16I CROSSMEMBER-COMP,RR,L |
39043-0331-16I |
US $114.73 |
||
| replacement | |||||
|
39043L
|
39043L
39043-0012-16I CROSSMEMBER-COMP,RR,L |
39043-0012-16I |
from US $114.73 |
||
|
39156
|
39156
39156-0764 PAD |
39156-0764 |
from US $81.96 |
||
|
55020
|
55020
55020-0723 GUARD,SKID,FR |
55020-0723 |
from US $38.26 |
||
|
55020C
|
55020C
55020-0727-388 GUARD,FRONT,T.BLACK |
55020-0727-388 |
from US $284.70 |
||
|
55020E
|
55020E
55020-0812 GUARD,SKID,RR |
55020-0812 |
from US $66.20 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92015A
|
92015A
92015-1791 NUT,POP,6MM,L=15.0 |
92015-1791 |
from US $2.85 |
||
|
92022
|
92022
92022-1317 WASHER,8.5X20X1.6,BLA |
92022-1317 |
from US $2.69 |
||
|
92066
|
92066
92066-7503 PLUG |
92066-7503 |
US $2.28 |
||
|
92152
|
92152
92152-0784 COLLAR |
92152-0784 |
from US $0.94 |
||
|
92172
|
92172
92172-0711 SCREW,6X16 |
92172-0711 |
from US $1.24 |
||
|
92200
|
92200
92200-7506 WASHER,10.2X23X2.5 |
92200-7506 |
from US $1.71 |
||
|
92210
|
92210
92210-0603 NUT,12MM |
92210-0603 |
from US $4.32 |
||
