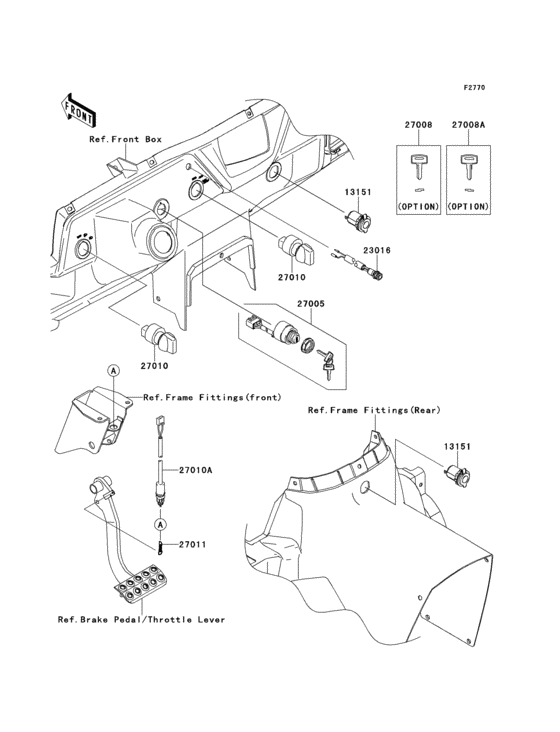

Ignition switch Diagram Kawasaki KRT750 Teryx4 750 4X4
- Model code
- KRT750ADF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23016
|
23016
23016-0046 LAMP-ASSY,LED |
23016-0046 |
US $12.26 |
||
| replacement | |||||
|
23016
|
23016
23016-0050 LAMP-ASSY,LED |
23016-0050 |
US $14.48 |
||
|
27005
|
27005
27005-0036 SWITCH-ASSY-IGNITION |
27005-0036 |
from US $76.36 |
||
|
27008
|
27008
27008-1153 KEY-LOCK,BLANK |
27008-1153 |
US $15.71 |
||
| replacement | |||||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANK |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1157 KEY-LOCK,BLANK |
27008-1157 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANK |
27008-1042 |
from US $12.83 |
||
|
27010
|
27010
27010-0706 SWITCH,HEAD LAMP |
27010-0706 |
from US $38.56 |
||
|
27010A
|
27010A
27010-0724 SWITCH,BRAKE |
27010-0724 |
from US $19.28 |
||
|
27011
|
27011
27011006 SPRING BRAKE LAMP SW |
27011006 |
from US $3.64 |
||
