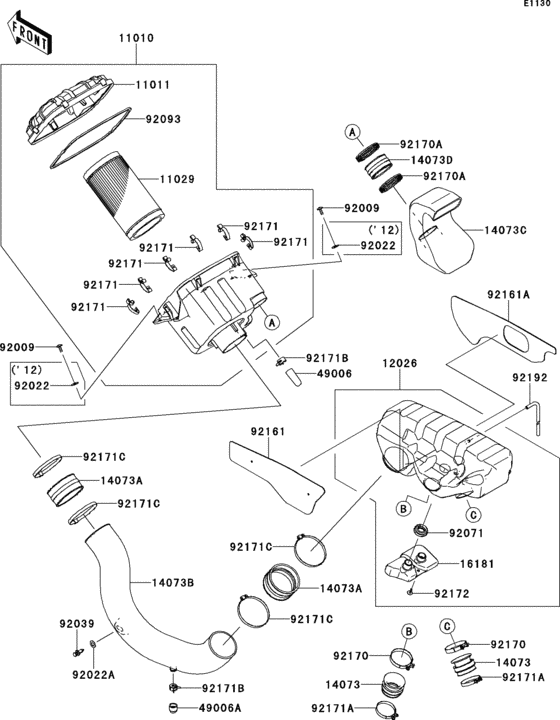

Air cleaner Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS
- Model code
- KRT750BCF
- Engine Capacity
- 749
- Year
- 2012
- Sales region
- USA
- Frame
- JKARTDB1 CB500001 - CB501900
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14073
|
14073
14073-0160 DUCT |
14073-0160 |
US $9.66 |
||
|
14073A
|
14073A
14073-0258 DUCT,JOINT,A/C SIDE |
14073-0258 |
US $9.88 |
||
|
14073D
|
14073D
14073-1775 DUCT,AIR FILTER JOINT |
14073-1775 |
US $5.68 |
||
|
49006
|
49006
49006-1351 BOOT |
49006-1351 |
US $9.27 |
||
|
49006A
|
49006A
49006-3718 BOOT,DRAIN |
49006-3718 |
from US $7.13 |
||
|
92009
|
92009
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92022A
|
92022A
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.53 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92071
|
92071
92071-1259 GROMMET |
92071-1259 |
from US $3.48 |
||
|
92170
|
92170
92170-1448 CLAMP |
92170-1448 |
from US $5.39 |
||
|
92170A
|
92170A
92170-1764 CLAMP |
92170-1764 |
from US $12.05 |
||
|
92171
|
92171
92171-0225 CLAMP |
92171-0225 |
US $2.53 |
||
|
92171A
|
92171A
92171-0722 CLAMP |
92171-0722 |
from US $7.62 |
||
|
92171B
|
92171B
92171-1277 CLAMP |
92171-1277 |
from US $1.58 |
||
|
92171C
|
92171C
92171-3716 CLAMP |
92171-3716 |
from US $10.52 |
||
|
92172
|
92172
92172-0297 SCREW |
92172-0297 |
US $2.21 |
||
