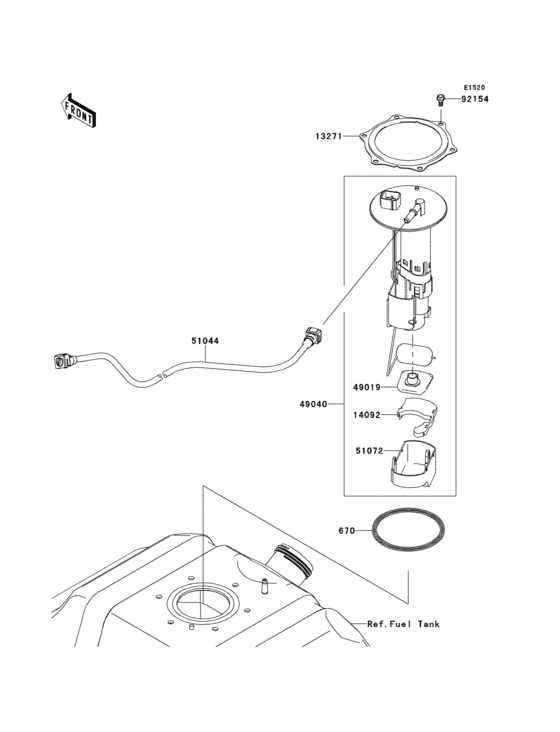

Fuel Pump Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DCF
- Engine Capacity
- 749
- Year
- 2012
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
670
|
670
670E5090 O RING ATV17-01 |
670E5090 |
from US $16.16 |
||
|
13271
|
13271
13271-0980 PLATE SXS17-03 |
13271-0980 |
US $5.11 |
||
| replacement | |||||
|
13271
|
13271
13272-2500 Plate |
13272-2500 |
US $8.30 |
||
|
14092
|
14092
14092-1044 COVER |
14092-1044 |
from US $20.12 |
||
|
49019
|
49019
49019-0013 FILTER-FUEL |
49019-0013 |
from US $19.80 |
||
|
49040
|
49040
49040-0716 Pump-fuel |
49040-0716 |
from US $780.71 |
||
|
51044
|
51044
51044-0703 TUBE-ASSY |
51044-0703 |
from US $75.11 |
||
|
51072
|
51072
51072-0003 CHAMBER-FUEL |
51072-0003 |
from US $28.27 |
||
