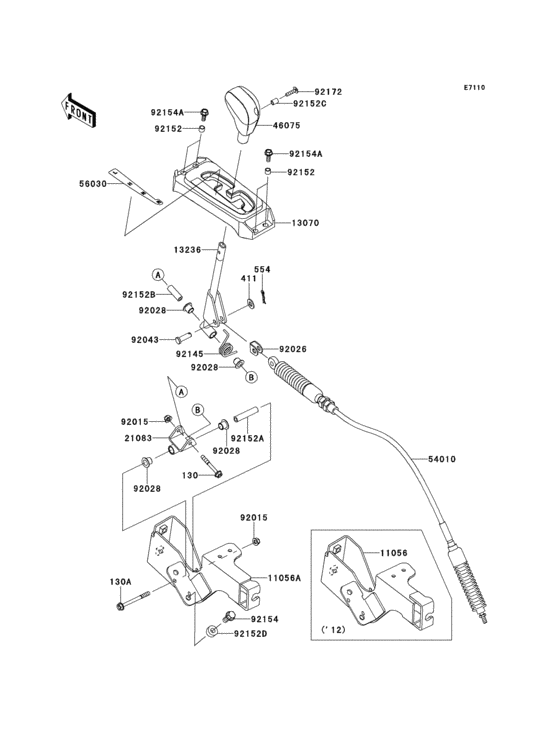

Control Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0645 BOLT-FLANGED,6X45 |
130CA0645 |
from US $1.27 |
||
|
130A
|
130A
130CA0665 BOLT-FLANGED,6X65 |
130CA0665 |
from US $1.20 |
||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
554
|
554
554DA0800 PIN-SNAP |
554DA0800 |
from US $0.63 |
||
|
11056A
|
11056A
11056-2203 BRACKET |
11056-2203 |
from US $62.06 |
||
|
13236
|
13236
13236-0710 LEVER-COMP,SHIFT |
13236-0710 |
from US $60.95 |
||
| replacement | |||||
|
13236
|
13236
13236-0727 LEVER-COMP,SHIFT |
13236-0727 |
from US $70.38 |
||
|
21083
|
21083
21083-0710 ARM |
21083-0710 |
from US $26.44 |
||
|
46075
|
46075
46075-0569 GRIP |
46075-0569 |
from US $16.65 |
||
|
54010
|
54010
54010-0583 CABLE,SHIFT |
54010-0583 |
from US $74.33 |
||
|
92015
|
92015
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92026
|
92026
92026-0074 SPACER |
92026-0074 |
from US $1.71 |
||
|
92028
|
92028
92028-1507 BUSHING |
92028-1507 |
from US $3.02 |
||
|
92043
|
92043
92043-0053 PIN |
92043-0053 |
from US $2.79 |
||
|
92145
|
92145
92145-0832 SPRING |
92145-0832 |
from US $2.49 |
||
|
92152
|
92152
92152-1332 COLLAR |
92152-1332 |
from US $2.17 |
||
|
92154
|
92154
92154-0100 BOLT,FLANGED,8X20 |
92154-0100 |
from US $1.40 |
||
| replacement | |||||
|
92154
|
92154
92154-7267 Bolt,Flanged,8X20 |
92154-7267 |
US $3.69 |
||
|
92154A
|
92154A
92154-0887 BOLT,FLANGED,6X16 |
92154-0887 |
from US $0.63 |
||
|
92172
|
92172
92172-2081 SCREW,5X20 |
92172-2081 |
from US $0.32 |
||
