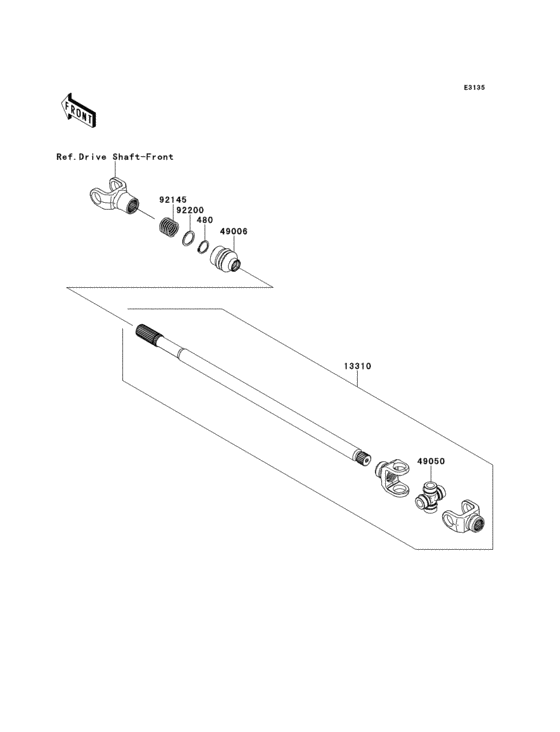

Drive shaft-propeller Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J2400 CIRCLIP 24MM |
480J2400 |
from US $1.27 |
||
|
49050
|
49050
49050-0023 SPIDER |
49050-0023 |
US $113.71 |
||
| replacement | |||||
|
49050
|
49050
49050-0034 SPIDER |
49050-0034 |
from US $132.31 |
||
|
92145
|
92145
92145-0823 SPRING |
92145-0823 |
from US $1.56 |
||
