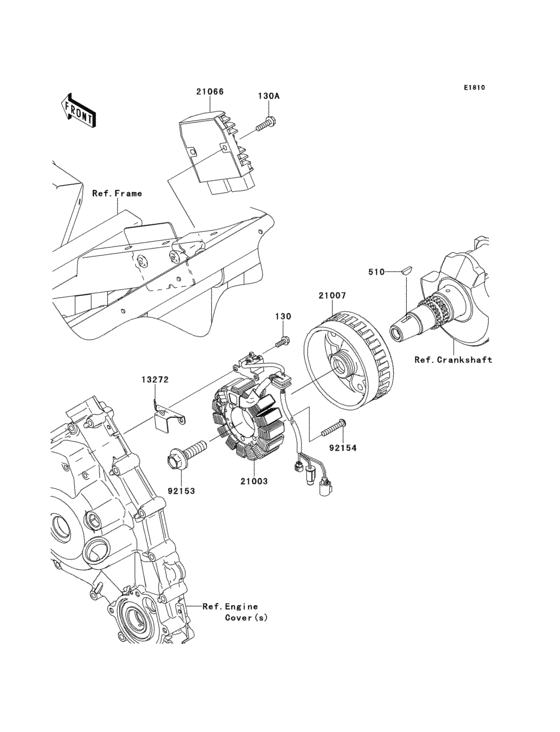

Generator Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0514 BOLT-FLANGED,5X14 |
130BA0514 |
from US $0.95 |
||
|
130A
|
130A
130BA0622 BOLT-FLANGED,6X22 |
130BA0622 |
from US $0.79 |
||
|
510
|
510
510A4200 KEY,WOODRUFF |
510A4200 |
from US $3.48 |
||
|
13272
|
13272
13272-1222 PLATE |
13272-1222 |
from US $1.71 |
||
|
21003
|
21003
21003-0108 Stator |
21003-0108 |
US $631.13 |
||
| replacement | |||||
|
21003
|
21003
21003-0167 STATOR |
21003-0167 |
from US $636.48 |
||
|
21007
|
21007
21007-0565 ROTOR |
21007-0565 |
from US $460.34 |
||
|
21066
|
21066
21066-0022 レギユレ-タ(ボルテ-ジ) |
21066-0022 |
from US $317.96 |
||
| replacements | |||||
|
21066
|
21066
21066-0758 REGULATOR-VOLTAGE |
21066-0758 |
US $347.67 |
||
|
21066
|
21066
21066-0771 Regulator-Voltage |
21066-0771 |
from US $213.44 |
||
|
92153
|
92153
92153-0951 BOLT,FLANGED,12X45 |
92153-0951 |
from US $3.01 |
||
|
92154
|
92154
92154-1007 BOLT,TORX,6X35 |
92154-1007 |
from US $1.24 |
||
