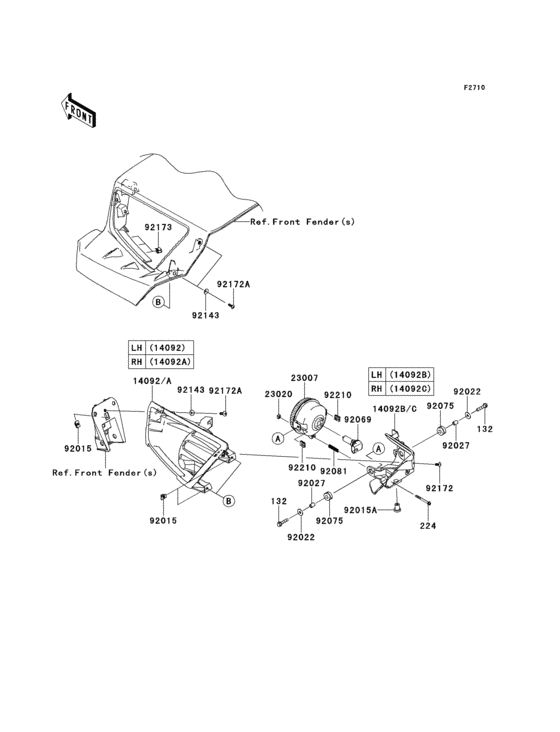

Headlight(s) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
224
|
224
224AA0445 SCREW-PAN-WP-CROS |
224AA0445 |
from US $0.94 |
||
|
14092
|
14092
14092-0054 COVER,HEAD LAMP,FR,LH |
14092-0054 |
US $18.56 |
||
|
14092A
|
14092A
14092-0055 COVER,HEAD LAMP,FR,RH |
14092-0055 |
US $18.56 |
||
|
14092B
|
14092B
14092-0056 COVER,HEAD LAMP,RR,LH |
14092-0056 |
US $35.63 |
||
|
14092C
|
14092C
14092-0057 COVER,HEAD LAMP,RR,RH |
14092-0057 |
US $29.39 |
||
|
23007
|
23007
23007-0096 Lens-comp,head lamp |
23007-0096 |
from US $57.05 |
||
|
23020
|
23020
23020018 NUT,4MM |
23020018 |
from US $3.17 |
||
|
92015
|
92015
92015-1627 NUT |
92015-1627 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $4.80 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-0019 BULB,12V 35/35W |
92069-0019 |
from US $16 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
|
92081
|
92081
92081-1896 SPRING |
92081-1896 |
from US $2.95 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92172
|
92172
92172-0262 SCREW,TAPPING,5X10 |
92172-0262 |
from US $0.63 |
||
|
92172A
|
92172A
92172-0322 SCREW,5X16 |
92172-0322 |
from US $0.95 |
||
|
92173
|
92173
92173-0104 CLAMP |
92173-0104 |
from US $1.56 |
||
|
92210
|
92210
92210-1125 NUT |
92210-1125 |
from US $2.85 |
||
