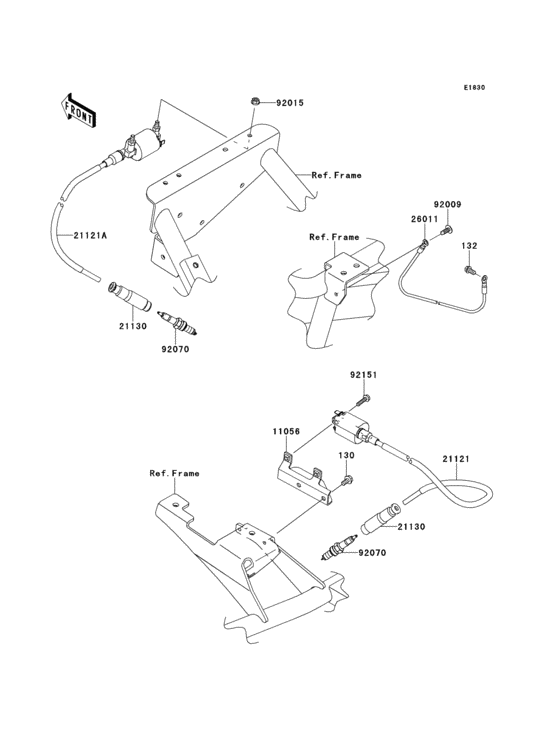

Ignition System Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
132
|
132
132BD0612 BOLT-FLANGED-SMALL,6X |
132BD0612 |
from US $0.95 |
||
|
11056
|
11056
11056-0714 BRACKET |
11056-0714 |
from US $7.02 |
||
|
21121
|
21121
21121-0045 COIL-IGNITION |
21121-0045 |
from US $48.37 |
||
|
21121A
|
21121A
21121-0702 COIL-IGNITION,FR |
21121-0702 |
from US $48.37 |
||
|
21130
|
21130
21130-1071 Cap-spark plug |
21130-1071 |
from US $24.09 |
||
|
26011
|
26011
26011-0712 WIRE-LEAD |
26011-0712 |
from US $15.39 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92070
|
92070
92070-0022 SPARK PLUG ,CPR7EA-9(NGK) |
92070-0022 |
from US $8.32 |
||
|
92151
|
92151
92151-1096 BOLT,SOCKET,5X20 |
92151-1096 |
from US $1.71 |
