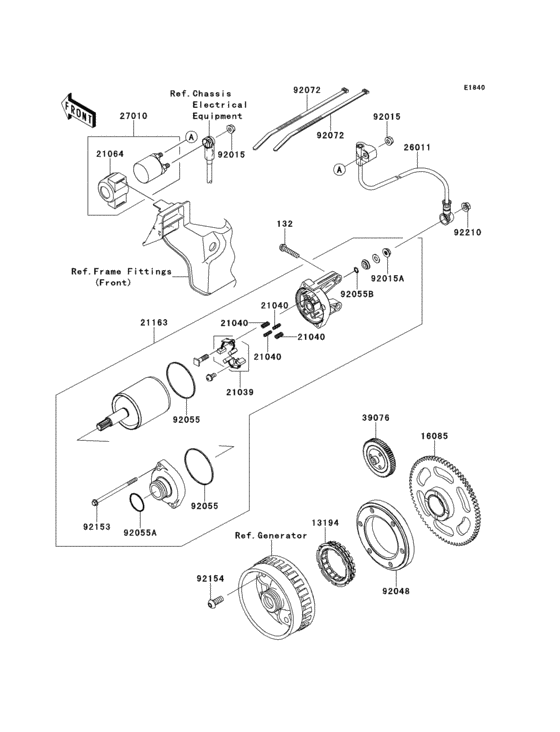

Starter motor Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
13194
|
13194
13194-1094 CLUTCH-ONEWAY |
13194-1094 |
US $152.83 |
||
|
16085
|
16085
16085-0591 GEAR,STARTER |
16085-0591 |
from US $76.05 |
||
|
21039
|
21039
21039-0004 BRUSH,CARBON |
21039-0004 |
from US $84.52 |
||
|
21040
|
21040
21040-0003 SPRING-BRUSH |
21040-0003 |
from US $6.18 |
||
|
21064
|
21064
21064002 DAMPER,MAGNETIC SWITC |
21064002 |
from US $14.41 |
||
| replacement | |||||
|
21064
|
21064
92161-1722 DAMPER,MAGNETIC SWITC |
92161-1722 |
from US $14.10 |
||
|
21163
|
21163
21163-0037 Starter-electric |
21163-0037 |
from US $713.84 |
||
|
26011
|
26011
26011-0708 WIRE-LEAD,STARTER |
26011-0708 |
from US $39.20 |
||
|
27010
|
27010
27010-1098 SWITCH,MAGNETIC |
27010-1098 |
US $131.04 |
||
| replacements | |||||
|
27010
|
27010
27010-1235 SWITCH,MAGNETIC |
27010-1235 |
from US $125.07 |
||
|
27010
|
27010
27010-0766 SWITCH,MAGNETIC |
27010-0766 |
from US $99.37 |
||
|
39076
|
39076
39076-0555 LIMITER,STARTER |
39076-0555 |
from US $163.30 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1476 NUT,6MM |
92015-1476 |
from US $2.69 |
||
|
92048
|
92048
92048-0553 RACE,ONEWAY CLUTCH |
92048-0553 |
from US $88.03 |
||
|
92055
|
92055
92055-0136 RING-O |
92055-0136 |
from US $3.48 |
||
|
92055A
|
92055A
92055-1276 RING-O |
92055-1276 |
from US $7.62 |
||
|
92055B
|
92055B
92055-1370 RING-O,4.5X2.0 |
92055-1370 |
from US $2.85 |
||
|
92072
|
92072
92072-3509 BAND |
92072-3509 |
from US $1.74 |
||
|
92153
|
92153
92153-1850 BOLT |
92153-1850 |
from US $6.34 |
||
|
92154
|
92154
92154-0421 BOLT,TORX,8X20 |
92154-0421 |
from US $2.17 |
||
|
92210
|
92210
92210-0188 NUT,6MM |
92210-0188 |
from US $0.95 |
||
