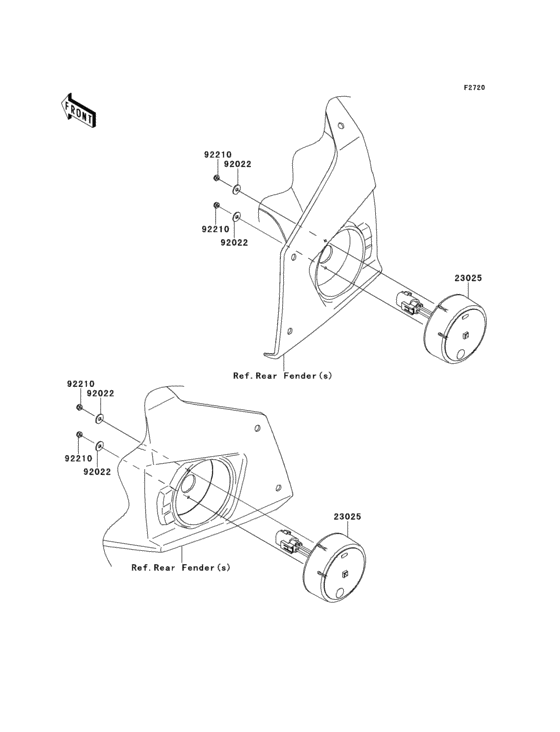

Taillight(s) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23025
|
23025
23025-0303 LAMP-TAIL |
23025-0303 |
from US $137.54 |
||
| replacement | |||||
|
23025
|
23025
23025-0356 LAMP-TAIL |
23025-0356 |
from US $168.01 |
||
|
92022
|
92022
92022-1949 WASHER,4.3X12.5X1 |
92022-1949 |
from US $2.38 |
||
|
92210
|
92210
92210-0722 NUT |
92210-0722 |
from US $0.16 |
||
