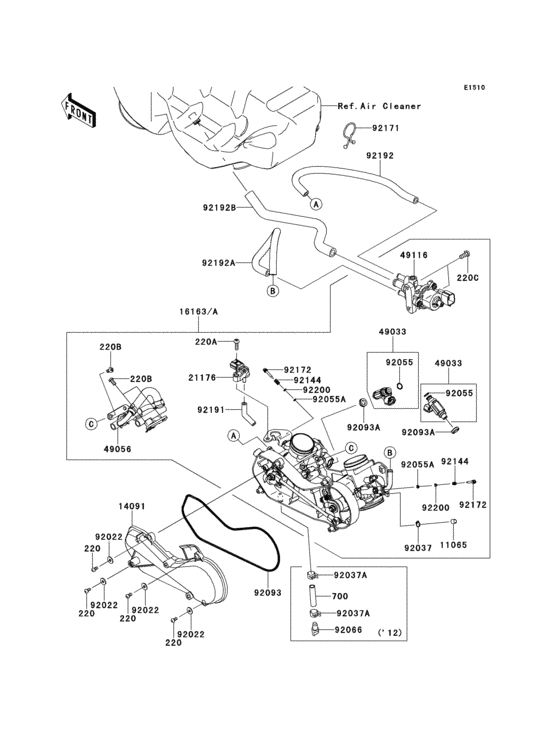

Throttle Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
220A
|
220A
220AA0516 SCREW-PAN-CROS |
220AA0516 |
from US $0.79 |
||
|
220B
|
220B
220AA0612 SCREW-PAN-CROSS,6X12 |
220AA0612 |
from US $0.91 |
||
|
220C
|
220C
220AA0614 SCREW-PAN-CROS,6X14 |
220AA0614 |
from US $0.95 |
||
|
11065
|
11065
11065-0072 CAP |
11065-0072 |
from US $4.28 |
||
|
14091
|
14091
14091-1731 COVER,THROTTLE LINK |
14091-1731 |
US $23.10 |
||
|
16163A
|
16163A
16163-0784 THROTTLE-ASSY,36EIS |
16163-0784 |
from US $1,111.97 |
||
|
21176
|
21176
21176-0111 SENSOR,PRESSURE |
21176-0111 |
from US $188.11 |
||
|
49033
|
49033
49033-0011 NOZZLE-INJECTION |
49033-0011 |
from US $76.30 |
||
|
49056
|
49056
49056-0033 PIPE-INJECTION |
49056-0033 |
from US $245.72 |
||
| replacement | |||||
|
49056
|
49056
49056-0028 PIPE-INJECTION |
49056-0028 |
from US $265.94 |
||
|
49116
|
49116
49116-0026 VALVE-ASSY,ISC |
49116-0026 |
from US $160.19 |
||
|
92022
|
92022
92022-1380 WASHER,5.2X13X1 |
92022-1380 |
from US $2.69 |
||
|
92037
|
92037
92037-1124 CLAMP,TUBE |
92037-1124 |
from US $3.48 |
||
|
92055
|
92055
92055-1622 RING-O,INJECTION NOZZLE |
92055-1622 |
from US $1.27 |
||
|
92055A
|
92055A
92055-1658 RING-O,AIR SCREW |
92055-1658 |
from US $3.48 |
||
|
92093
|
92093
92093-0082 SEAL |
92093-0082 |
US $7.55 |
||
|
92093A
|
92093A
92093-0127 SEAL |
92093-0127 |
from US $5.86 |
||
|
92144
|
92144
92144-1674 SPRING,THROTTLE STOP |
92144-1674 |
from US $4.12 |
||
|
92171
|
92171
92171-0876 CLAMP |
92171-0876 |
from US $1.24 |
||
|
92172
|
92172
92172-0156 SCREW |
92172-0156 |
from US $8.08 |
||
|
92191
|
92191
92191-1552 TUBE,3.2X7.4X70 |
92191-1552 |
from US $2.38 |
||
|
92200
|
92200
92200-1564 WASHER,PILOT AIR SCRE |
92200-1564 |
from US $1.43 |
||
