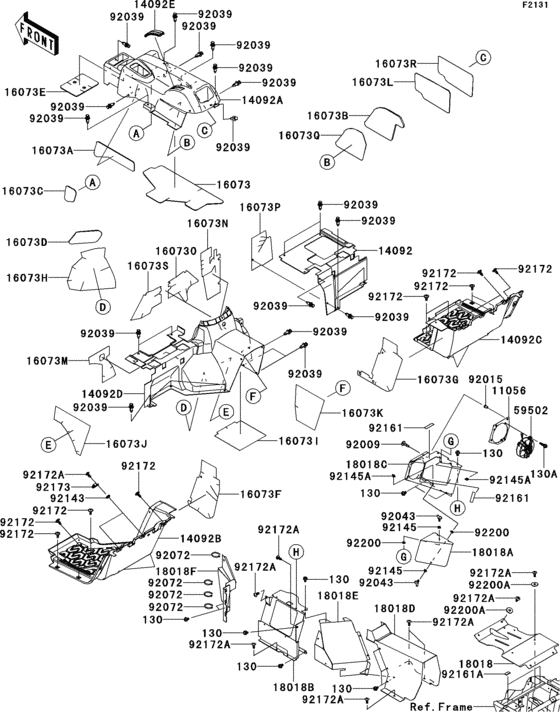

Frame fittings(1/2)(rear) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- USA
- Frame
- JKARTDD1 DB501501 - 999999
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130A
|
130A
130BA0622 BOLT-FLANGED,6X22 |
130BA0622 |
from US $0.79 |
||
|
92009
|
92009
92009-1465 SCREW |
92009-1465 |
from US $2.53 |
||
|
92015
|
92015
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $4.80 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92072
|
92072
92072-1293 BAND |
92072-1293 |
from US $6.18 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92172A
|
92172A
92172-0739 SCREW,TAPPING,6X16 |
92172-0739 |
from US $0.32 |
||
|
92200A
|
92200A
92200-1087 WASHER,6.5X22X1.6 |
92200-1087 |
from US $3.02 |
||
