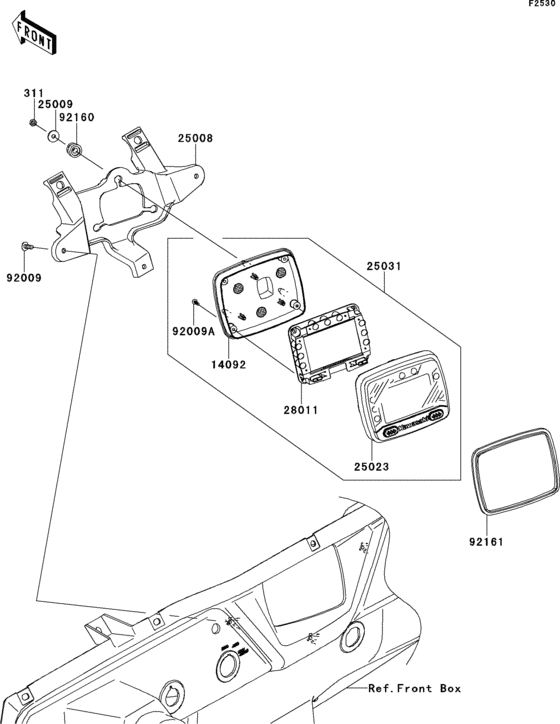

Meter(s) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- USA
- Frame
- JKARTDD1 DB501501 - 999999
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311AB0500 NUT-HEX |
311AB0500 |
from US $0.75 |
||
|
25009
|
25009
25009-004
WASHER,5.2X16X16X1.2T
|
25009-004 |
— | ||
| replacement | |||||
|
25009
|
25009
92200-2276
Washer,5.2X16X1.2
|
92200-2276 |
— | ||
|
92009
|
92009
92009-1197 SCREW |
92009-1197 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1255 SCREW,TAPPING,3X12 |
92009-1255 |
from US $2.53 |
||
|
92160
|
92160
92160-1460 DAMPER |
92160-1460 |
from US $2.79 |
||
|
92161
|
92161
92161-0906 DAMPER,METER |
92161-0906 |
from US $2.49 |
||
