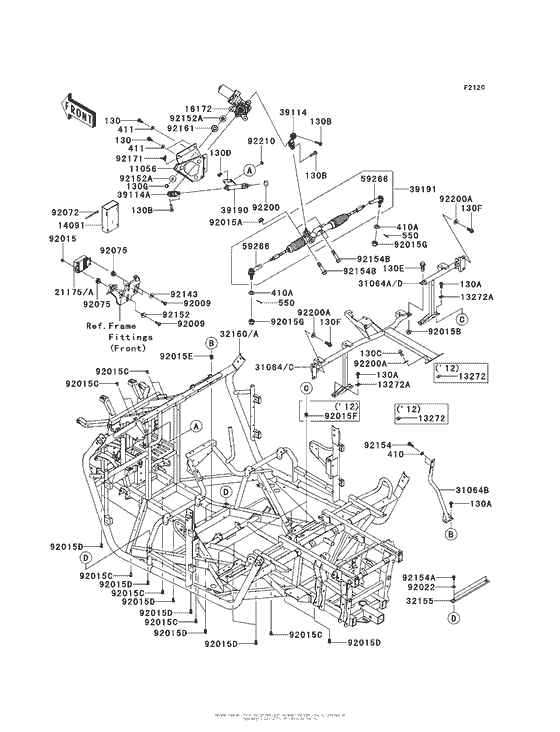

Frame Diagram Kawasaki KRT750 Teryx4 750 4x4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0816 BOLT-FLANGED |
130BA0816 |
from US $1.11 |
||
|
130A
|
130A
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
130B
|
130B
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
130C
|
130C
130BA1020 BOLT-FLANGED,10X20 |
130BA1020 |
from US $1.09 |
||
|
130D
|
130D
130BA1022 BOLT-FLANGED,10X22 |
130BA1022 |
from US $0.78 |
||
|
130E
|
130E
130BA1235 BOLT-FLANGED,12X35 |
130BA1235 |
from US $1.71 |
||
|
130F
|
130F
130BB1025 BOLT-FLANGED,10X25 |
130BB1025 |
from US $1.43 |
||
|
130G
|
130G
130CA0845 BOLT-FLANGED,8X45 |
130CA0845 |
from US $1.40 |
||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
410A
|
410A
410AA1400 WASHER-PLAIN-SMALL,14 |
410AA1400 |
from US $0.95 |
||
|
411
|
411
411AA0800 WASHER-PLAIN |
411AA0800 |
from US $0.72 |
||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.95 |
||
|
11056
|
11056
11056-7781 BRACKET |
11056-7781 |
from US $107.29 |
||
|
13272A
|
13272A
13272-1336 PLATE |
13272-1336 |
from US $0.94 |
||
|
14091
|
14091
14091-7560 COVER,ECU |
14091-7560 |
from US $27.22 |
||
|
16172
|
16172
16172-0557 ACTUATOR,EPS |
16172-0557 |
from US $1,531.87 |
||
|
21175A
|
21175A
21175-0809 CONTROL UNIT-ELECTRON |
21175-0809 |
from US $632.97 |
||
|
31064B
|
31064B
31064-0594 PIPE-COMP |
31064-0594 |
from US $41.21 |
||
|
31064C
|
31064C
31064-0612 PIPE-COMP,SUB FRAME,S |
31064-0612 |
from US $168.93 |
||
|
31064D
|
31064D
31064-0632 PIPE-COMP,SUB FRAME,S |
31064-0632 |
from US $80.09 |
||
|
32155
|
32155
32155-1076 PIPE,FR FLOOR |
32155-1076 |
from US $12.02 |
||
|
32160A
|
32160A
32160-0644 FRAME-COMP |
32160-0644 |
US $3,709.39 |
||
|
39114
|
39114
39114-0017 SHAFT-COMP-STRG |
39114-0017 |
from US $104.01 |
||
|
39114A
|
39114A
39114-0019 SHAFT-COMP-STRG |
39114-0019 |
from US $106.73 |
||
|
39190
|
39190
39190-7501 SHAFT-ASSY-STEERING |
39190-7501 |
from US $163.30 |
||
|
39191
|
39191
39191-0018
GEAR-ASSY-STEERING
|
39191-0018 |
— | ||
| replacement | |||||
|
39191
|
39191
39191-0036 Gear-Assy-Steering |
39191-0036 |
US $1,078.01 |
||
|
59266
|
59266
59266-0706 JOINT-BALL |
59266-0706 |
from US $50.70 |
||
|
92009
|
92009
92009-1465 SCREW |
92009-1465 |
from US $2.53 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92015B
|
92015B
92015-1706 NUT |
92015-1706 |
from US $4.75 |
||
|
92015C
|
92015C
92015-1791 NUT,POP,6MM,L=15.0 |
92015-1791 |
from US $2.85 |
||
|
92015D
|
92015D
92015-1792 NUT,POP,6MM,L=16.5 |
92015-1792 |
from US $2.85 |
||
|
92015E
|
92015E
92015-1793 NUT,POP,8MM,L=16.5 |
92015-1793 |
from US $3.01 |
||
|
92015G
|
92015G
92015-1841 NUT,CASTLE,14MM |
92015-1841 |
from US $5.13 |
||
|
92022
|
92022
92022-2247 WASHER |
92022-2247 |
from US $0.63 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92075
|
92075
92075-1123 DAMPER, HEAD LMP FITT |
92075-1123 |
from US $3.17 |
||
|
92143
|
92143
92143-1025 COLLAR,L=6.5 |
92143-1025 |
from US $3.27 |
||
|
92152
|
92152
92152-0957 COLLAR,6.5X10X13.3 |
92152-0957 |
from US $5.13 |
||
|
92152A
|
92152A
92152-2149 COLLAR,8.5X30X10.6 |
92152-2149 |
from US $4.67 |
||
|
92154
|
92154
92154-0100 BOLT,FLANGED,8X20 |
92154-0100 |
from US $1.40 |
||
| replacement | |||||
|
92154
|
92154
92154-7267 Bolt,Flanged,8X20 |
92154-7267 |
US $3.69 |
||
|
92154A
|
92154A
92154-0887 BOLT,FLANGED,6X16 |
92154-0887 |
from US $0.63 |
||
|
92154B
|
92154B
92154-1008 BOLT,FLANGED,12X50 |
92154-1008 |
from US $3.57 |
||
|
92161
|
92161
92161-7517 DAMPER,ACTUATOR |
92161-7517 |
US $4.13 |
||
|
92171
|
92171
92171-0453 CLAMP |
92171-0453 |
US $4.47 |
||
|
92200
|
92200
92200-0460 WASHER,15X25X1.6 |
92200-0460 |
from US $1.71 |
||
|
92200A
|
92200A
92200-7506 WASHER,10.2X23X2.5 |
92200-7506 |
from US $1.71 |
||
|
92210
|
92210
92210-1080 NUT |
92210-1080 |
from US $6.49 |
||
