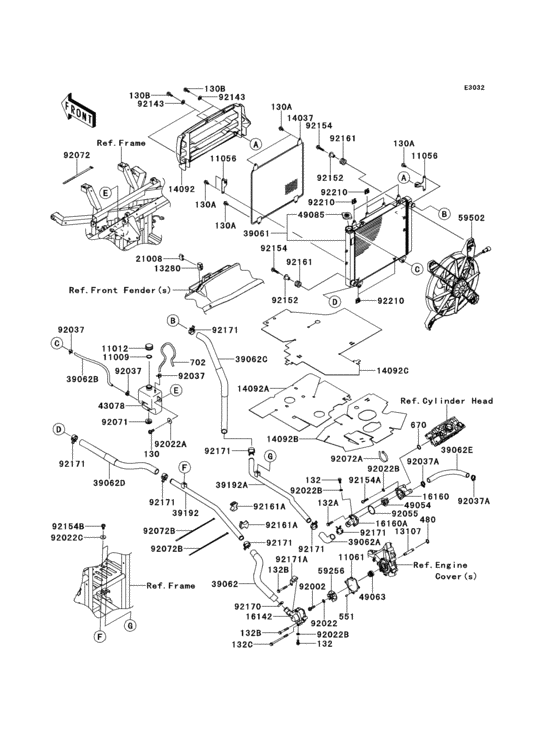

Radiator(1/2) Diagram Kawasaki KRT800 Teryx4
- Model code
- KRT800AEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
130A
|
130A
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130B
|
130B
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
132A
|
132A
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
132B
|
132B
132BA0640 BOLT-FLANGED-SMALL |
132BA0640 |
from US $1.27 |
||
|
132C
|
132C
132BA0680 BOLT-FLANGED-SMALL |
132BA0680 |
from US $1.43 |
||
|
480
|
480
480J1200 CIRCLIP 12MM |
480J1200 |
from US $0.82 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8 |
551A0408 |
from US $1.17 |
||
|
670
|
670
670B2020 0 RING,20MM |
670B2020 |
from US $2.85 |
||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANK |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANK |
11012-1084 |
from US $2.14 |
||
|
11056
|
11056
11056-0722 BRACKET |
11056-0722 |
from US $10.27 |
||
|
11061
|
11061
11061-0731 GASKET,WATER PUMP COV |
11061-0731 |
from US $4.90 |
||
|
13107
|
13107
13107-0719 SHAFT,WATER PUMP |
13107-0719 |
from US $21.96 |
||
|
13280
|
13280
13280-0082 HOLDER,BREAKER |
13280-0082 |
from US $3.11 |
||
|
14037
|
14037
14037-0739 SCREEN |
14037-0739 |
from US $163.91 |
||
|
14092
|
14092
14092-0086-6Z COVER,RADIATOR,F.BLAC |
14092-0086-6Z |
US $30.29 |
||
|
14092A
|
14092A
14092-1060 COVER,HEAT GUARD,FR |
14092-1060 |
from US $24.96 |
||
|
16142
|
16142
16142-0705 COVER-PUMP,WATER |
16142-0705 |
US $61.16 |
||
| replacement | |||||
|
16142
|
16142
16142-0743 COVER-PUMP,WATER |
16142-0743 |
from US $48.53 |
||
|
16160
|
16160
16160-0734 BODY,THERMOSTAT,LWR |
16160-0734 |
from US $48.05 |
||
|
16160A
|
16160A
16160-0735 BODY,THERMOSTAT,UPP |
16160-0735 |
from US $39.97 |
||
|
39061
|
39061
39061-0568 Radiator-assy |
39061-0568 |
from US $578.95 |
||
|
39192
|
39192
39192-0569 PIPE-WATER,LH |
39192-0569 |
from US $30.94 |
||
| replacement | |||||
|
39192
|
39192
39192-0673 Pipe-Water,Lh |
39192-0673 |
US $35.75 |
||
|
39192A
|
39192A
39192-0571 PIPE-WATER,RH |
39192-0571 |
from US $38.32 |
||
| replacement | |||||
|
39192A
|
39192A
39192-0675 Pipe-Water,Rh |
39192-0675 |
US $46.70 |
||
|
43078
|
43078
43078-0070 RESERVOIR |
43078-0070 |
from US $30.17 |
||
|
49054
|
49054
49054-1055 THERMOSTAT |
49054-1055 |
from US $36.65 |
||
|
49063
|
49063
49063-1055 SEAL-MECHANICAL |
49063-1055 |
from US $21.37 |
||
|
49085
|
49085
49085-0005 CAP-ASSY-PRESSURE |
49085-0005 |
US $51.77 |
||
|
59256
|
59256
59256-0555 IMPELLER |
59256-0555 |
from US $26.03 |
||
|
59502
|
59502
59502-0566 Fan-Assy |
59502-0566 |
US $373.57 |
||
| replacements | |||||
|
59502
|
59502
59502-0609 Fan-Assy |
59502-0609 |
from US $477 |
||
|
59502
|
59502
59502-0610 Fan-Assy |
59502-0610 |
from US $477 |
||
|
59502
|
59502
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
59502
|
59502
92005-0851 FITTING |
92005-0851 |
from US $1.24 |
||
|
59502
|
59502
92192-1703 TUBE,BREATHER |
92192-1703 |
from US $3.11 |
||
|
92002
|
92002
92002-1154 BOLT,6X22 |
92002-1154 |
from US $2.85 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92022A
|
92022A
92022-165 WASHER-PLAIN |
92022-165 |
from US $0.79 |
||
| replacements | |||||
|
92022A
|
92022A
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
|
92022A
|
92022A
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92022B
|
92022B
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92022C
|
92022C
92022-3714 WASHER,6.2X20X2 |
92022-3714 |
from US $3.01 |
||
|
92037
|
92037
92037-1461 TUBE CLAMP |
92037-1461 |
from US $3.17 |
||
|
92037A
|
92037A
92037-1589 CLAMP,COOLING HOSE |
92037-1589 |
from US $12.04 |
||
|
92055
|
92055
92055-1279 RING-O,45MM |
92055-1279 |
from US $5.24 |
||
|
92071
|
92071
92071-1115 GROMMET,RESERVIOR TAN |
92071-1115 |
from US $3.33 |
||
|
92072
|
92072
92072-032 BAND,LONG |
92072-032 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1237 BAND,L=250 |
92072-1237 |
from US $2.74 |
||
|
92072B
|
92072B
92072-3872 BAND,L=368.3 |
92072-3872 |
from US $1.90 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92152
|
92152
92152-1512 COLLAR |
92152-1512 |
from US $8.55 |
||
|
92154
|
92154
92154-0498 BOLT,FLANGED,6X25 |
92154-0498 |
from US $0.79 |
||
|
92154A
|
92154A
92154-1142 BOLT,SOCKET,6X25ソケツト，6X25 |
92154-1142 |
from US $0.63 |
||
|
92154B
|
92154B
92154-1195 BOLT,FLANGED,6X12 |
92154-1195 |
from US $0.78 |
||
|
92161
|
92161
92161-1349 DAMPER |
92161-1349 |
from US $4.35 |
||
|
92170
|
92170
92170-1284
CLAMP
|
92170-1284 |
— | ||
| replacement | |||||
|
92170
|
92170
92171-0179 Clamp |
92171-0179 |
from US $6.49 |
||
|
92171
|
92171
92171-0060 CLAMP,COOLING HOSE |
92171-0060 |
from US $2.02 |
||
|
92171A
|
92171A
92171-0926 CLAMP |
92171-0926 |
from US $4.91 |
||
|
92210
|
92210
92210-0867 NUT |
92210-0867 |
from US $1.74 |
||
