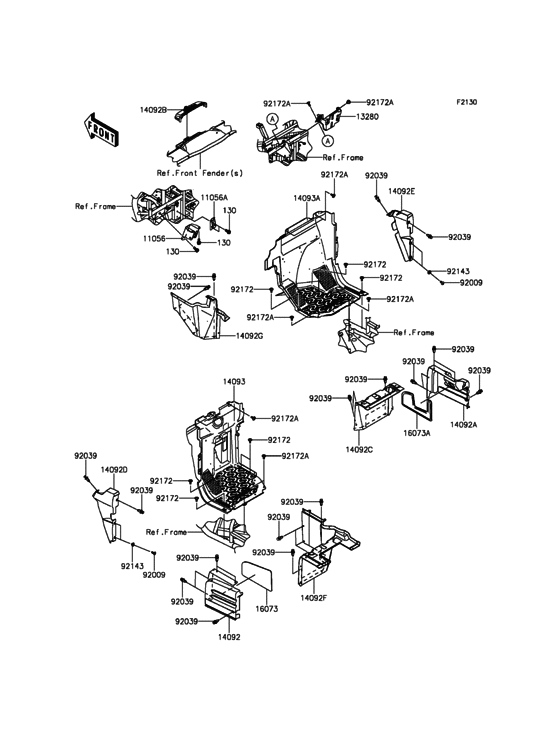

Frame Fittings(Front) Diagram Kawasaki KRT800 Teryx4 Camo
- Model code
- KRT800DFF
- Engine Capacity
- 783
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0818 BOLT-FLANGED,8X18 |
130BA0818 |
from US $1.09 |
||
|
11056
|
11056
11056-1431 BRACKET,BRAKE PEDAL |
11056-1431 |
from US $64.26 |
||
|
11056A
|
11056A
11056-4408 BRACKET,THROTTLE PEDA |
11056-4408 |
from US $11.66 |
||
|
13280
|
13280
14092-0720 COVER,SEAT SIDE,LH |
14092-0720 |
from US $16.27 |
||
|
14092A
|
14092A
14092-0721 COVER,SEAT SIDE,RH |
14092-0721 |
from US $16.27 |
||
|
14092B
|
14092B
14092-0724 COVER,FUSE BOX |
14092-0724 |
from US $6.38 |
||
|
14092C
|
14092C
14092-0757 COVER,FR SEAT,RH |
14092-0757 |
from US $22.53 |
||
|
14092G
|
14092G
14092-1083 COVER,FR SEAT,RH,CNT |
14092-1083 |
from US $28.05 |
||
|
14093
|
14093
14093-5137 COVER,FR FLOOR,LH |
14093-5137 |
US $87.26 |
||
| replacement | |||||
|
14093
|
14093
14093-0550 COVER,FR FLOOR,LH, 39-36-21 ins |
14093-0550 |
from US $102.32 |
||
|
14093A
|
14093A
14093-5138 COVER,FR FLOOR,RH |
14093-5138 |
US $117.26 |
||
| replacement | |||||
|
14093A
|
14093A
14093-0551 COVER,FR FLOOR,RH |
14093-0551 |
from US $102.32 |
||
|
16073
|
16073
16073-0810 INSULATOR,SEAT SIDE,L |
16073-0810 |
from US $18.50 |
||
|
16073A
|
16073A
16073-0811 INSULATOR,SEAT SIDE,R |
16073-0811 |
from US $18.50 |
||
|
92009
|
92009
92039-0768 RIVET |
92039-0768 |
from US $1.56 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
US $1.51 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92172
|
92172
92172-0711 SCREW,6X16 |
92172-0711 |
from US $1.24 |
||
|
92172A
|
92172A
92172-0826 SCREW,6X16 |
92172-0826 |
from US $1.24 |
||
