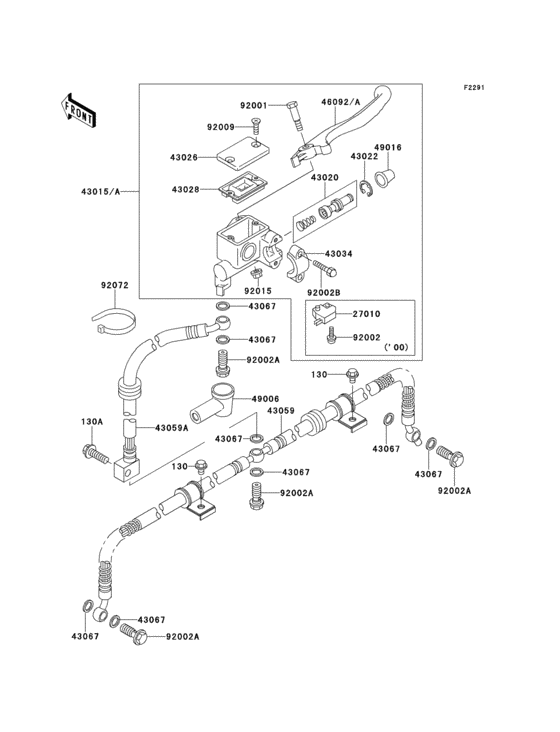

Front master cylinder Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A13
- Engine Capacity
- 245
- Year
- 1999
- Sales region
- USA
- Colour
- Polar White (F1)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
|
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130B0825
BOLT-FLANGED,8X25
|
130B0825 |
— | ||
| replacement | |||||
|
130A
|
130A
130CA0825 BOLT-FLANGED,8X25 |
130CA0825 |
from US $0.94 |
||
|
43015
|
43015
43015-1489 CYLINDER-ASSY-MASTER, |
43015-1489 |
from US $309.48 |
||
|
43020
|
43020
43020-1056 PISTON-COMP-BRAKE,FR |
43020-1056 |
from US $42.04 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1074 CAP-BRAKE |
43026-1074 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER C |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1875 HOSE-BRAKE,FR |
43059-1875 |
US $134.17 |
||
|
43059A
|
43059A
43059-1876 HOSE-BRAKE,FR |
43059-1876 |
US $74.97 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
46092
|
46092
46092-1136 LEVER-GRIP,FRONT BRAK |
46092-1136 |
from US $23.49 |
||
|
49006
|
49006
49006-1040 BOOT,DUST |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUST |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1728 BOLT,FRONT BRAKE LEVER |
92001-1728 |
from US $10.45 |
||
|
92002A
|
92002A
92002-1888
BOLT,OIL,L=23
|
92002-1888 |
— | ||
| replacement | |||||
|
92002A
|
92002A
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92002B
|
92002B
92002-1894 BOLT |
92002-1894 |
from US $3.17 |
||
|
92009
|
92009
92009-1458 SCREW,4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
