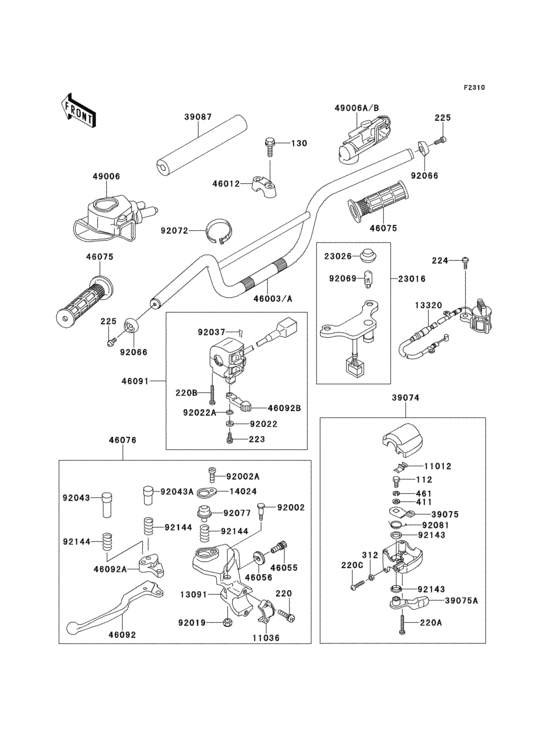

Handlebar(1/2) Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A13
- Engine Capacity
- 245
- Year
- 1999
- Sales region
- USA
- Colour
- Polar White (F1)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112D0614 BOLT-UPSET |
112D0614 |
US $2.59 |
||
| replacement | |||||
|
112
|
112
112AA0614 BOLT-UPSET |
112AA0614 |
from US $0.82 |
||
|
130
|
130
130P0860 BOLT-FLANGED,8X60 |
130P0860 |
US $1.44 |
||
| replacement | |||||
|
130
|
130
130CA0860 BOLT-FLANGED,8X60 |
130CA0860 |
from US $1.43 |
||
|
220
|
220
220C0514
SCREW-PAN-CROSS
|
220C0514 |
— | ||
| replacement | |||||
|
220
|
220
220AB0514 SCREW-PAN-CROSS |
220AB0514 |
from US $1.25 |
||
|
220A
|
220A
220C0530
SCREW-PAN-CROSS
|
220C0530 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0530 SCREW-PAN-CROSS |
220AB0530 |
from US $0.95 |
||
|
220B
|
220B
220C0535 SCREW-PAN-CROSS,5X35 |
220C0535 |
from US $1.27 |
||
| replacement | |||||
|
220B
|
220B
220AB0535 SCREW-PAN-CROSS,5X35 |
220AB0535 |
from US $0.95 |
||
|
220C
|
220C
220C0630
SCREW-PAN-CROSS
|
220C0630 |
— | ||
| replacement | |||||
|
220C
|
220C
220AB0630 SCREW-PAN-CROSS |
220AB0630 |
from US $1.11 |
||
|
223
|
223
223C0512 SCREW-PAN-WS-CROS |
223C0512 |
US $5.36 |
||
| replacement | |||||
|
223
|
223
223AB0512 SCREW-PAN-WS-CROS |
223AB0512 |
from US $5.61 |
||
|
224
|
224
224B0520 SCREW-PAN-WP-CROS |
224B0520 |
from US $0.27 |
||
| replacement | |||||
|
224
|
224
224AA0520 SCREW-PAN-WP-CROS |
224AA0520 |
from US $0.82 |
||
|
225
|
225
225C0620
SCREW-PAN-WSP-CROS,6X
|
225C0620 |
— | ||
| replacement | |||||
|
225
|
225
225AB0620 SCREW-PAN-WSP-CROS,6X |
225AB0620 |
from US $1.09 |
||
|
312
|
312
312C0600 NUT-HEX,6MM,BLACK |
312C0600 |
from US $1.27 |
||
| replacement | |||||
|
312
|
312
312AB0600 NUT-HEX,6MM,BLACK |
312AB0600 |
from US $0.94 |
||
|
411
|
411
411E0600
W-plain-s
|
411E0600 |
— | ||
| replacements | |||||
|
411
|
411
410AA0600 WASHER-PLAIN-SMALL |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1) |
411AA0600 |
from US $2.13 |
||
|
411
|
411
92022-1777 Superceded |
92022-1777 |
US $10.19 |
||
|
411
|
411
410B0600
WASHER-PLAIN-SMALL
|
410B0600 |
— | ||
|
461
|
461
461L0600 WASHER-SPRING,6MM |
461L0600 |
US $4.30 |
||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11012
|
11012
11012-1425 LEVER-ASSY-THROTTLE |
11012-1425 |
US $66.80 |
||
| replacements | |||||
|
11012
|
11012
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
11012
|
11012
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
|
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDER |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13091
|
13091
13091-1456 HOLDER |
13091-1456 |
from US $27.99 |
||
|
13320
|
13320
13320-1006 LEVER-ASSY,REVERSE |
13320-1006 |
from US $86.16 |
||
|
14024
|
14024
14024-1351 COVER |
14024-1351 |
from US $6.06 |
||
|
23016
|
23016
23016-1105 LAMP-ASSY,NEUTRAL&REV |
23016-1105 |
from US $44.94 |
||
|
23026
|
23026
23026-1105 LENS,OIL |
23026-1105 |
from US $7.92 |
||
|
39074
|
39074
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
39075
|
39075
39075-1054 LEVER-THROTTLE,ARM |
39075-1054 |
from US $6.84 |
||
|
39075A
|
39075A
39075-1059 LEVER-THROTTLE |
39075-1059 |
from US $18.82 |
||
|
39087
|
39087
39087-1051 PAD-HANDLE |
39087-1051 |
US $15.41 |
||
|
46003A
|
46003A
46003-1369-CD HANDLE,F.RED |
46003-1369-CD |
US $45.23 |
||
|
46012
|
46012
46012-1168 HOLDER-HANDLE |
46012-1168 |
from US $10.66 |
||
|
46055
|
46055
46055009 SCREW,CABLE ADJUST |
46055009 |
from US $12.99 |
||
|
46056
|
46056
46056006 NUT,CABLE ADJUST LOCK |
46056006 |
from US $6.02 |
||
|
46075
|
46075
46075-1056 GRIP |
46075-1056 |
from US $22.75 |
||
|
46076
|
46076
46076-1137 LEVER-ASSY-GRIP,LH |
46076-1137 |
from US $105.48 |
||
|
46091
|
46091
46091-1477 HOUSING-ASSY-CONTROL, |
46091-1477 |
from US $136.08 |
||
|
46092
|
46092
46092-1137 LEVER-GRIP,CLUTCH |
46092-1137 |
from US $15.07 |
||
|
46092A
|
46092A
46092-1138 LEVER-GRIP,PARKING |
46092-1138 |
from US $9.63 |
||
|
46092B
|
46092B
46092-1139 LEVER-GRIP,CHOKE |
46092-1139 |
from US $7.62 |
||
|
49006
|
49006
49006-1197
BOOT
|
49006-1197 |
— | ||
|
49006A
|
49006A
49006-1198
BOOT
|
49006-1198 |
— | ||
|
92002
|
92002
92002-1833 BOLT,LEVER SET |
92002-1833 |
US $4.46 |
||
|
92002A
|
92002A
92002-1834 BOLT,TAPPING |
92002-1834 |
from US $2.23 |
||
|
92019
|
92019
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1837 WASHER,5MM |
92022-1837 |
from US $4.13 |
||
|
92022A
|
92022A
92022-1838 WASHER,WAVE,5MM |
92022-1838 |
from US $4.13 |
||
|
92037
|
92037
92037-1836 CLAMP,CLIP |
92037-1836 |
from US $3.11 |
||
|
92043
|
92043
92043-1341 PIN |
92043-1341 |
from US $4.82 |
||
|
92043A
|
92043A
92043-1342 PIN |
92043-1342 |
from US $4.98 |
||
|
92066
|
92066
92066-1191
PLUG,HANDLE
|
92066-1191 |
— | ||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92077
|
92077
92077-1076 KNOB,PARKING LEVER |
92077-1076 |
from US $4.05 |
||
|
92081
|
92081
92081-1685
LEVER-ASSY-THROTTLE
|
92081-1685 |
— | ||
| replacements | |||||
|
92081
|
92081
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
92081
|
92081
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
|
92143
|
92143
92143-1138 COLLAR |
92143-1138 |
from US $1.71 |
||
|
92144
|
92144
92144-1058 SPRING |
92144-1058 |
US $4.46 |
||
