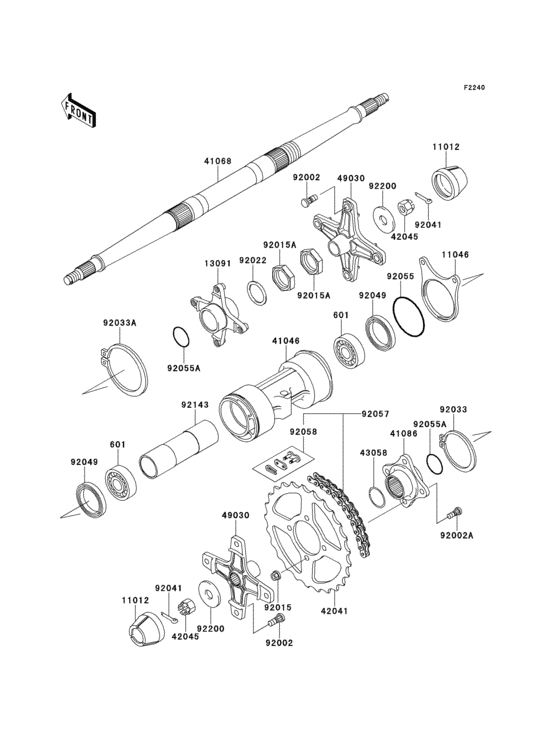

Rear hub Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A13
- Engine Capacity
- 245
- Year
- 1999
- Sales region
- USA
- Colour
- Polar White (F1)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601A6008UU BEARING |
601A6008UU |
from US $30.64 |
||
|
11012
|
11012
11012-1969 CAP,WHEEL |
11012-1969 |
from US $5.33 |
||
|
11046
|
11046
11046-1062 BRACKET,CALIPER |
11046-1062 |
from US $34.68 |
||
|
13091
|
13091
13091-1449 HOLDER,DISC PLATE |
13091-1449 |
US $81.81 |
||
|
41046
|
41046
41046-1086
HOUSING-BEARING
|
41046-1086 |
— | ||
|
41068
|
41068
41068-1235 AXLE,RR |
41068-1235 |
from US $550.54 |
||
|
41086
|
41086
41086-1070 FLANGE,REAR SPROCKET |
41086-1070 |
from US $71.08 |
||
|
42041
|
42041
42041-1433 SPROCKET-HUB |
42041-1433 |
from US $51.55 |
||
|
42045
|
42045
42045018 NUT CASTLE,18MM |
42045018 |
from US $7.76 |
||
|
43058
|
43058
43058-1060
RING,SNAP
|
43058-1060 |
— | ||
|
49030
|
49030
49030-1078
HUB,RR
|
49030-1078 |
— | ||
|
92002
|
92002
92002-1388 BOLT,10X30 |
92002-1388 |
from US $5.13 |
||
|
92002A
|
92002A
92002-1459 BOLT,10MM |
92002-1459 |
from US $3.11 |
||
|
92015
|
92015
92015-1335 NUT,LOCK,FLANGED,10MM |
92015-1335 |
from US $3.15 |
||
| replacement | |||||
|
92015
|
92015
92210-0276 NUT,LOCK,FLANGED,10MM |
92210-0276 |
from US $1.43 |
||
|
92015A
|
92015A
92015-1545 NUT,LOCK,37MM |
92015-1545 |
from US $10.43 |
||
|
92022
|
92022
92022-1746 WASHER,37.5X48X2.3 |
92022-1746 |
from US $3.89 |
||
|
92033
|
92033
92033-1216 RING-SNAP,95MM |
92033-1216 |
from US $21.61 |
||
|
92033A
|
92033A
92033-1217 RING-SNAP,75MM |
92033-1217 |
from US $13.38 |
||
|
92041
|
92041
92041-1053 COTTER,4.0X35 |
92041-1053 |
from US $2.33 |
||
|
92049
|
92049
92049-1237 SEAL-OIL |
92049-1237 |
from US $8.24 |
||
|
92055
|
92055
92055-1213 RING-O,76MM |
92055-1213 |
from US $6.34 |
||
|
92055A
|
92055A
92055-1317 RING-O,38MM |
92055-1317 |
from US $2.79 |
||
|
92057
|
92057
92057-1254 CHAIN-EK520 SR02X90L |
92057-1254 |
from US $185.07 |
||
|
92058
|
92058
92058-1060 JOINT-CHAIN |
92058-1060 |
from US $7.13 |
||
|
92143
|
92143
92143-1036
COLLAR,40.2X45.4X159
|
92143-1036 |
— | ||
|
92200
|
92200
92200-1474 WASHER,18.5X52X4.5 |
92200-1474 |
from US $4.67 |
||
