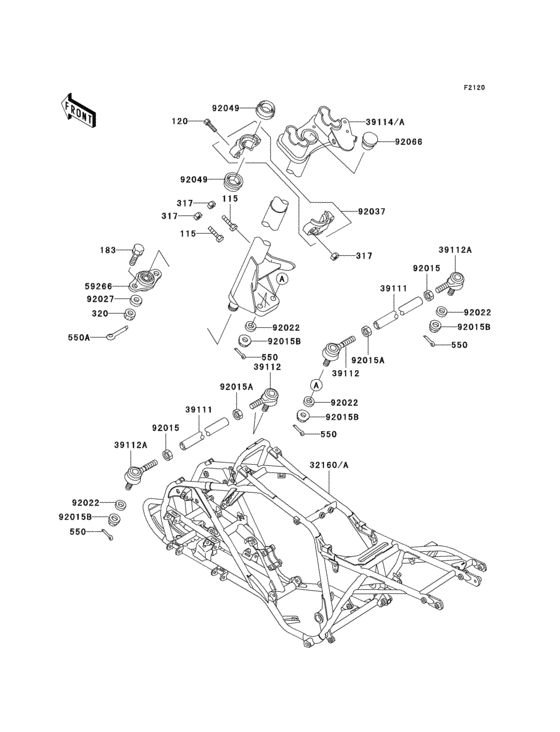

Frame Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A15
- Engine Capacity
- 245
- Year
- 2001
- Sales region
- USA
- Colour
- Lime Green (7F)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0830
BOLT-SMALL-USET,8X30
|
115G0830 |
— | ||
| replacement | |||||
|
115
|
115
115BA0830 BOLT-SMALL-USET,8X30 |
115BA0830 |
from US $1.09 |
||
|
120
|
120
120P0850 BOLT,ALLEN 8X50 |
120P0850 |
US $4.05 |
||
| replacement | |||||
|
120
|
120
120CA0850 BOLT,ALLEN 8X50 |
120CA0850 |
from US $1.43 |
||
|
183
|
183
183G0822 BOLT-UPSET-WS-SMALL |
183G0822 |
US $4.12 |
||
| replacement | |||||
|
183
|
183
183BA0822 BOLT-UPSET-WS-SMALL |
183BA0822 |
from US $1.40 |
||
|
317
|
317
317G0800 NUT-HEX-SMALL,8MM |
317G0800 |
from US $1.11 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MM |
317BA0800 |
from US $0.95 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D2518 PIN,COTTER,2.5X18 |
550D2518 |
US $0.79 |
||
| replacement | |||||
|
550A
|
550A
550AA2518 PIN,COTTER,2.5X18 |
550AA2518 |
from US $0.79 |
||
|
32160
|
32160
32160-1279-CC FRAME COMP.,L. GREEN |
32160-1279-CC |
US $1,157.44 |
||
|
39111
|
39111
39111-1069 ROD-TIE |
39111-1069 |
from US $23.95 |
||
|
39114
|
39114
39114-1080-CC SHAFT-COMP-STRG,L.GRE |
39114-1080-CC |
US $210.60 |
||
|
59266
|
59266
59266-1066 JOINT-BALL |
59266-1066 |
from US $101.40 |
||
|
92015
|
92015
92015-1460 NUT,LOCK,10MM |
92015-1460 |
from US $3.57 |
||
|
92015A
|
92015A
92015-1494 NUT,LOCK,10MM |
92015-1494 |
from US $3.48 |
||
|
92015B
|
92015B
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92022
|
92022
92022-239 WASHER,PLAIN |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1817 COLLAR,10X21.3X7 |
92027-1817 |
from US $9.07 |
||
|
92037
|
92037
92037-1839 CLAMP,STEERING SHAFT |
92037-1839 |
from US $39.82 |
||
|
92049
|
92049
92049-1278 SEAL-OIL,SR7 25 34 7. |
92049-1278 |
from US $3.89 |
||
|
92066
|
92066
92066-1220 PLUG |
92066-1220 |
from US $3.48 |
||
