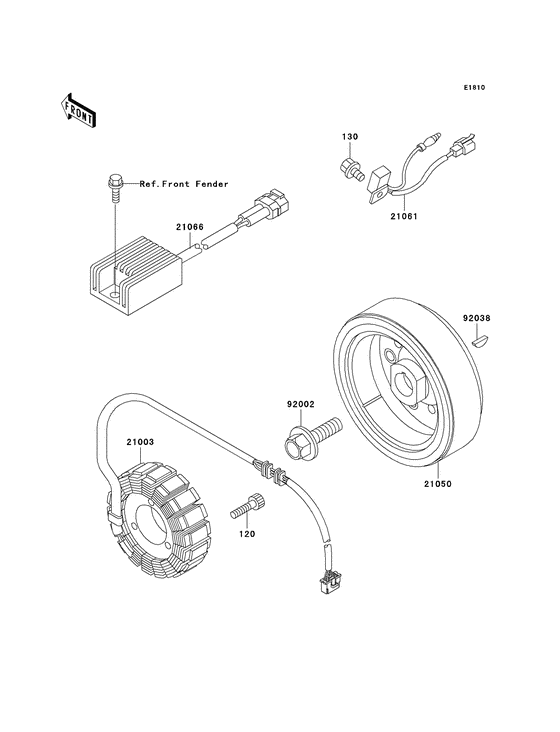

Generator Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A17
- Engine Capacity
- 245
- Year
- 2003
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0630 BOLT-SOCKET,6X30Bolt-socket,6x30; |
120P0630 |
US $1.27 |
||
| replacement | |||||
|
120
|
120
120CA0630 BOLT-SOCKET,6X30Bolt-socket,6x30; |
120CA0630 |
from US $1.27 |
||
|
130
|
130
130G0612
BOLT-FLANGED,6X12
Bolt-flanged,6x12; |
130G0612 |
— | ||
| replacement | |||||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12Bolt-flanged,6x12; |
130BA0612 |
from US $0.79 |
||
|
21003
|
21003
21003-1155 STATOR |
21003-1155 |
from US $528.77 |
||
|
21050
|
21050
21050-1124 FLYWHEEL |
21050-1124 |
US $599.08 |
||
|
21061
|
21061
21061-1005 RECTIFIER |
21061-1005 |
from US $54.59 |
||
|
21066
|
21066
21066-1072 REGULATOR-VOLTAGE |
21066-1072 |
from US $185.86 |
||
|
92002
|
92002
92002-1296 BOLT,10X40Bolt,flanged,10x40; |
92002-1296 |
from US $6.65 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYKey,woodruff; |
92038-001 |
from US $3.73 |
||
