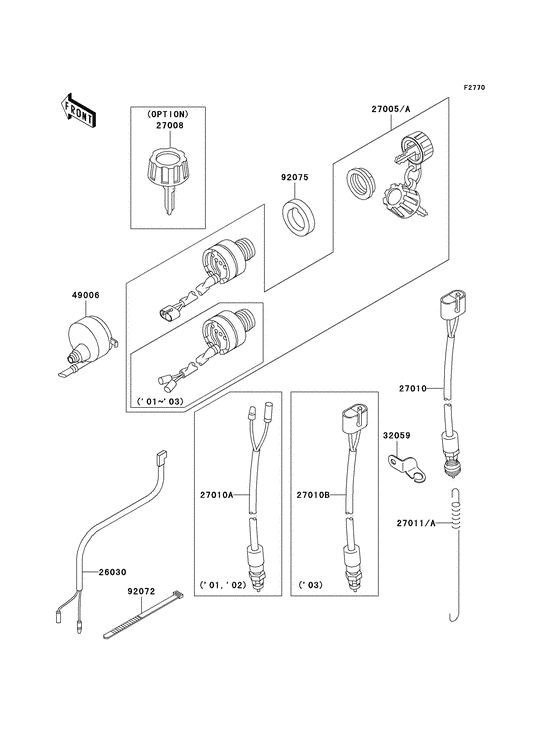

Ignition switch Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A17
- Engine Capacity
- 245
- Year
- 2003
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26030
|
26030
26030-1058 HARNESS |
26030-1058 |
from US $12.12 |
||
|
27005A
|
27005A
27005-1119 SWITCH-ASSY-IGNITION |
27005-1119 |
from US $115.86 |
||
|
27008
|
27008
27008-1131 KEY-LOCK,BLANKKey-lock,blank; (option) |
27008-1131 |
from US $12.44 |
||
|
27010B
|
27010B
27010-1473 SWITCH,REAR BRKAESwitch,rear brkae; |
27010-1473 |
from US $25.75 |
||
|
27011A
|
27011A
27011014 SPRING,SWITCH,GMNSpring,switch; |
27011014 |
from US $7.13 |
||
|
32059
|
32059
32059-1108 BRACKET-SWITCH,REAR BBracket-switch,rear brake; |
32059-1108 |
from US $7.78 |
||
|
49006
|
49006
49006-1207 BOOT,IGNITION SWITCHBoot,ignition switch; |
49006-1207 |
from US $11.66 |
||
|
92072
|
92072
92072-1239 BAND,L=188Band,l=188; |
92072-1239 |
from US $1.90 |
||
|
92075
|
92075
92075-1842 DAMPER |
92075-1842 |
from US $3.11 |
