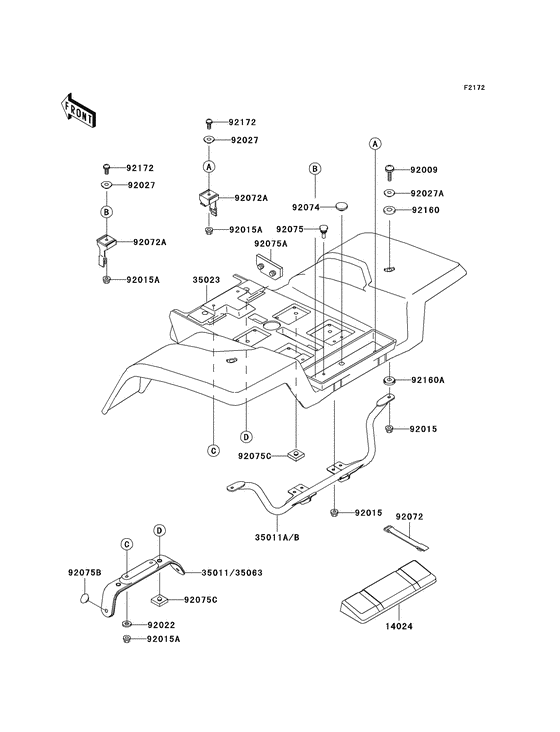

Rear fender Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A17
- Engine Capacity
- 245
- Year
- 2003
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14024
|
14024
14024-1283-6W COVER, REAR, GREENCover,rear fender,l.green; |
14024-1283-6W |
US $50.24 |
||
|
35011B
|
35011B
35011-1698-HN STAY,REAR FENDER,RR,GStay,rear fender,rr,g.gray; |
35011-1698-HN |
US $43.22 |
||
|
35023
|
35023
35023-1167-6W
FENDER-REAR, GREEN
Fender-rear,l.green; |
35023-1167-6W |
— | ||
|
35063
|
35063
35063-1170 STAY,REAR FENDER,FRStay,rear fender,fr; |
35063-1170 |
US $47.54 |
||
|
92009
|
92009
92009-1465 SCREWScrew,6x25; |
92009-1465 |
from US $2.53 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm,black; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1339 NUT,LOCK,FLANGED,6MMNut,lock,flanged,6mm; |
92015-1339 |
from US $1.84 |
||
|
92022
|
92022
92022-1804 WASHER 6.5X20X1.6TWasher,6.5x20x1.6; |
92022-1804 |
US $2.34 |
||
| replacements | |||||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer,6.5x20x1.6; |
92022-125 |
— | ||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer,6.5x20x1.6; |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-1260 COLLARCollar,l=5.1; |
92027-1260 |
from US $3.64 |
||
|
92027A
|
92027A
92027-1767 COLLAR |
92027-1767 |
from US $3.33 |
||
|
92072
|
92072
92072-1203 BAND,L=150Band,l=150; |
92072-1203 |
from US $8.71 |
||
|
92072A
|
92072A
92072-1215 BAND |
92072-1215 |
from US $21.15 |
||
|
92074
|
92074
92074-038 RUBBER PLUGPlug,11x3.2; |
92074-038 |
from US $3.89 |
||
|
92075
|
92075
92075-1808 DAMPER |
92075-1808 |
from US $1.87 |
||
|
92075A
|
92075A
92075-1860 DAMPER |
92075-1860 |
US $6.38 |
||
|
92075B
|
92075B
92075-1861 DAMPER |
92075-1861 |
from US $5.44 |
||
|
92075C
|
92075C
92075-1882 DAMPER,SEAT |
92075-1882 |
from US $5.39 |
||
|
92160
|
92160
92160-1011 DAMPER |
92160-1011 |
from US $3.17 |
||
|
92160A
|
92160A
92160-1017 DAMPER |
92160-1017 |
from US $3.27 |
||
|
92172
|
92172
92172-0004 SCREW,6X14Screw,6x14; |
92172-0004 |
from US $1.27 |
||
