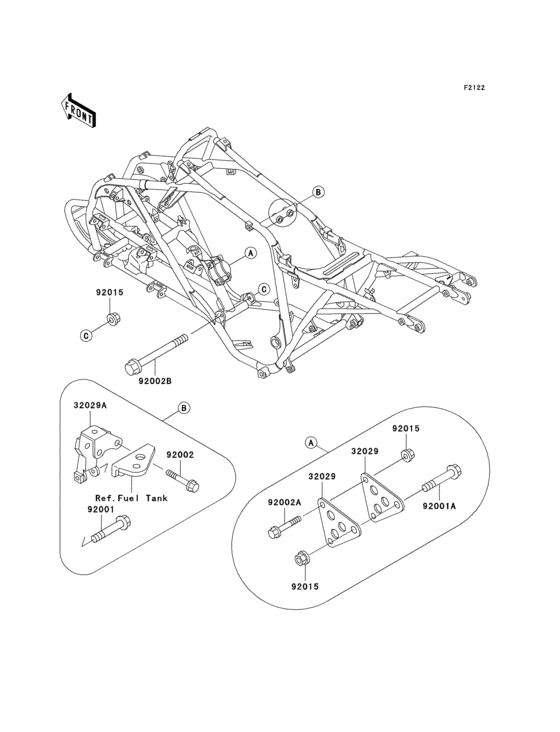

Engine mount Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A17
- Engine Capacity
- 245
- Year
- 2003
- Sales region
- Europe
- Colour
- Lime Green (7F)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32029
|
32029
32029-1474 BRACKET-ENGINE |
32029-1474 |
US $12.91 |
||
|
32029A
|
32029A
32029-1475 BRACKET-ENGINE,TOP |
32029-1475 |
from US $24.11 |
||
|
92001
|
92001
92001-1579 BOLT,FLANGED,8X45 |
92001-1579 |
from US $3.11 |
||
|
92001A
|
92001A
92001-4021 BOLT,10X75 |
92001-4021 |
from US $5.54 |
||
|
92002
|
92002
92002-1182 BOLT,8X50 |
92002-1182 |
from US $5.70 |
||
|
92002A
|
92002A
92002-1764 BOLT,FLANGED,10X80 |
92002-1764 |
from US $4.51 |
||
|
92002B
|
92002B
92002-1765 BOLT,FLANGED,10X145 |
92002-1765 |
from US $6.68 |
||
|
92015
|
92015
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
