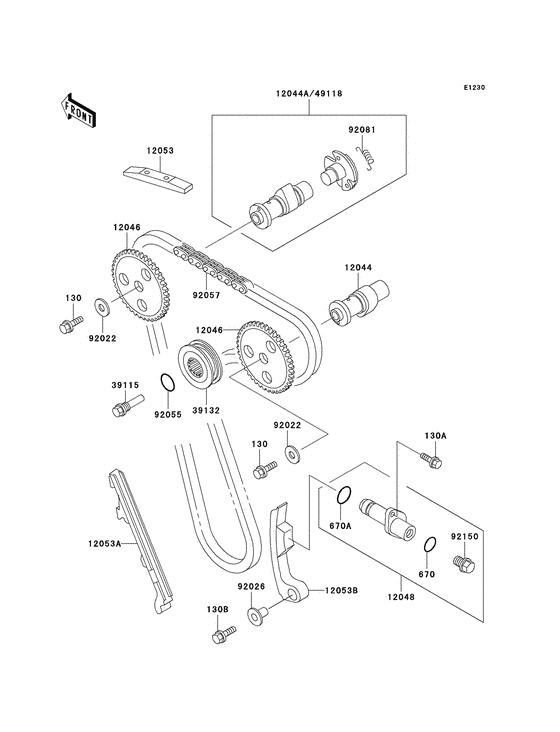

Camshaft/tensioner Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A18
- Engine Capacity
- 245
- Year
- 2004
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130G1025 |
from US $1.90 |
||
| replacements | |||||
|
130
|
130
130P1025
BOLT-FLANGED
Bolt-flanged,10x25; |
130P1025 |
— | ||
|
130
|
130
130BA1025 BOLT-FLANGED,10X25Bolt-flanged,10x25; |
130BA1025 |
from US $1.43 |
||
|
130A
|
130A
130J0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130J0625 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BB0625 |
from US $1.61 |
||
|
130B
|
130B
130P0830 BOLT-FLANGEDBolt-flanged,8x30; |
130P0830 |
from US $1.74 |
||
| replacement | |||||
|
130B
|
130B
130CA0830 BOLT-FLANGEDBolt-flanged,8x30; |
130CA0830 |
from US $1.27 |
||
|
670
|
670
670D2010 O RING |
670D2010 |
from US $2.52 |
||
|
670A
|
670A
670D2021 0 RING,21MMO ring,21mm; |
670D2021 |
from US $4.75 |
||
|
12044
|
12044
12044-1348
CAMSHAFT-VALVE,INTAKE
Camshaft-valve,intake; |
12044-1348 |
— | ||
|
12044A
|
12044A
12044-1427
CAMSHAFT-VALVE,EXHAUS
Camshaft-valve,exhaust; |
12044-1427 |
— | ||
|
12046
|
12046
12046-1063 SPROCKET,42TSprocket,42t; |
12046-1063 |
from US $43.23 |
||
|
12048
|
12048
12048-1066 TENSIONER-ASSY,CAMTensioner-assy,cam chain; |
12048-1066 |
from US $101.88 |
||
|
12053
|
12053
12053-1107 GUIDE-CHAIN,UPPGuide-chain,upp; |
12053-1107 |
from US $16.79 |
||
|
12053A
|
12053A
12053-1125 GUIDE-CHAIN,FRGuide-chain,fr; |
12053-1125 |
US $41.14 |
||
|
12053B
|
12053B
12053-1126 GUIDE-CHAIN,RRGuide-chain,rr; |
12053-1126 |
from US $64.18 |
||
|
39115
|
39115
39115-1051 SHAFT-IDLER |
39115-1051 |
from US $23.49 |
||
|
39132
|
39132
39132-1052 SPROCKET-ASSY-IDLER |
39132-1052 |
US $64.18 |
||
|
49118
|
49118
49118-1168 CAMSHAFT-COMP,EXHAUSTCamshaft-comp,exhaust; |
49118-1168 |
from US $286.16 |
||
|
92022
|
92022
92022-1365 WASHER,10X22X3Washer,10x22x3; |
92022-1365 |
from US $3.17 |
||
|
92026
|
92026
92026-1231 SPACER,L=28.3Spacer,l=28.3; |
92026-1231 |
from US $12.04 |
||
|
92055
|
92055
92055-1141 RING-O,ID=13.8Ring-o,id=13.8; |
92055-1141 |
from US $2.53 |
||
|
92057
|
92057
92057-1170 CHAIN,CAMSHAFT 79RU20Chain,cam,79rh2010-158l; |
92057-1170 |
from US $84.97 |
||
|
92081
|
92081
92081-1626 SPRING,DECOMPRESSORSpring,decompressor; |
92081-1626 |
from US $3.17 |
||
|
92150
|
92150
92150-1380 BOLT,TENSIONERBolt,tensioner; |
92150-1380 |
from US $4.28 |
||
