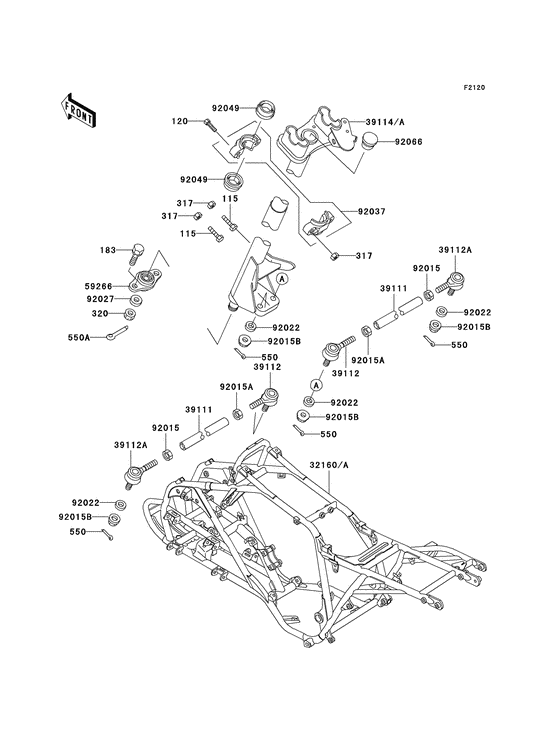

Frame Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A18
- Engine Capacity
- 245
- Year
- 2004
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0830
BOLT-SMALL-USET,8X30
Bolt-small-upset,8x30; |
115G0830 |
— | ||
| replacement | |||||
|
115
|
115
115BA0830 BOLT-SMALL-USET,8X30Bolt-small-upset,8x30; |
115BA0830 |
from US $1.09 |
||
|
120
|
120
120P0850 BOLT,ALLEN 8X50Bolt-socket,8x50; |
120P0850 |
US $4.05 |
||
| replacement | |||||
|
120
|
120
120CA0850 BOLT,ALLEN 8X50Bolt-socket,8x50; |
120CA0850 |
from US $1.43 |
||
|
183
|
183
183G0822 BOLT-UPSET-WS-SMALL |
183G0822 |
US $4.12 |
||
| replacement | |||||
|
183
|
183
183BA0822 BOLT-UPSET-WS-SMALL |
183BA0822 |
from US $1.40 |
||
|
317
|
317
317G0800 NUT-HEX-SMALL,8MMNut-hex-small,8mm; |
317G0800 |
from US $1.11 |
||
| replacement | |||||
|
317
|
317
317BA0800 NUT-HEX-SMALL,8MMNut-hex-small,8mm; |
317BA0800 |
from US $0.95 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D2518 PIN,COTTER,2.5X18Pin-cotter,2.5x18; |
550D2518 |
US $0.79 |
||
| replacement | |||||
|
550A
|
550A
550AA2518 PIN,COTTER,2.5X18Pin-cotter,2.5x18; |
550AA2518 |
from US $0.79 |
||
|
32160A
|
32160A
32160-1279-HN FRAME-COMP,G.GRAYFrame-comp,g.gray; |
32160-1279-HN |
US $1,134.20 |
||
|
39111
|
39111
39111-1069 ROD-TIE |
39111-1069 |
from US $23.95 |
||
|
39112
|
39112
39112-1063 RODEND-TIE |
39112-1063 |
from US $60.81 |
||
|
39112A
|
39112A
39112-1064 RODEND-TIE |
39112-1064 |
from US $60.81 |
||
|
39114A
|
39114A
39114-1080-HN SHAFT-COMP-STRG,G.GRAShaft-comp-strg,g.gray; |
39114-1080-HN |
US $225.36 |
||
|
59266
|
59266
59266-1066 JOINT-BALL |
59266-1066 |
from US $101.40 |
||
|
92015
|
92015
92015-1460 NUT,LOCK,10MMNut,10mm,lh,thread; |
92015-1460 |
from US $3.57 |
||
|
92015A
|
92015A
92015-1494 NUT,LOCK,10MMNut,10mm; |
92015-1494 |
from US $3.48 |
||
|
92015B
|
92015B
92015-1717 NUT,LOCK,FLANGED,10MMNut,lock,flanged,10mm; |
92015-1717 |
from US $6.34 |
||
|
92022
|
92022
92022-239 WASHER,PLAINWasher,10.5x20x1; |
92022-239 |
from US $2.53 |
||
|
92027
|
92027
92027-1817 COLLAR,10X21.3X7Collar,10x21.3x7; |
92027-1817 |
from US $9.07 |
||
|
92037
|
92037
92037-1839 CLAMP,STEERING SHAFTClamp,steering shaft; |
92037-1839 |
from US $39.82 |
||
|
92049
|
92049
92049-1278 SEAL-OIL,SR7 25 34 7.Seal-oil,sr7 25 34 7.8 ns; |
92049-1278 |
from US $3.89 |
||
|
92066
|
92066
92066-1220 PLUG |
92066-1220 |
from US $3.48 |
||
