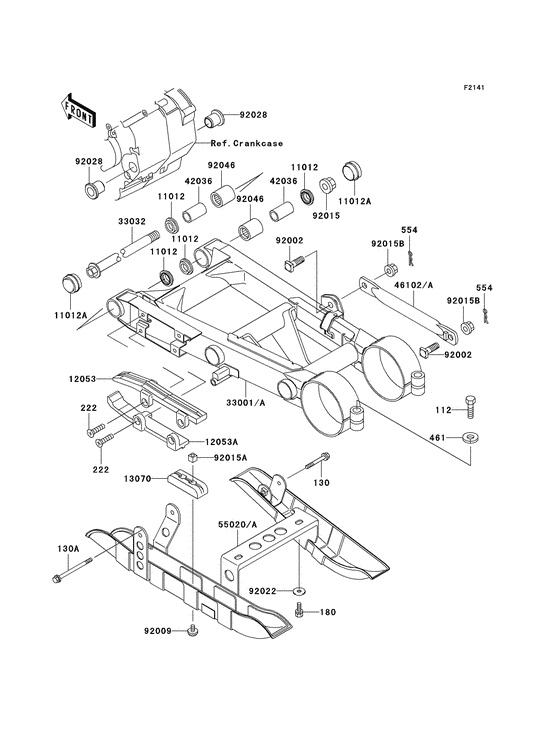

Swingarm Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A18
- Engine Capacity
- 245
- Year
- 2004
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112P1035 BOLT-UPSET |
112P1035 |
US $4.64 |
||
| replacement | |||||
|
112
|
112
112CA1035 BOLT-UPSET |
112CA1035 |
US $4.64 |
||
|
130
|
130
130G0640
BOLT-FLANGED,6X40
Bolt-flanged,6x40; |
130G0640 |
— | ||
| replacement | |||||
|
130
|
130
130BA0640 BOLT-FLANGED,6X40Bolt-flanged,6x40; |
130BA0640 |
from US $0.79 |
||
|
130A
|
130A
130G0680 BOLT-FLANGED |
130G0680 |
US $1.94 |
||
| replacement | |||||
|
130A
|
130A
130BA0680 BOLT-FLANGED |
130BA0680 |
from US $1.30 |
||
|
180
|
180
180G0614 BOLT-UPSET-WS,6X14Bolt-upset-ws,6x14; |
180G0614 |
US $2.79 |
||
| replacement | |||||
|
180
|
180
180BA0614 BOLT-UPSET-WS,6X14Bolt-upset-ws,6x14; |
180BA0614 |
from US $0.63 |
||
|
222
|
222
222B0612 SCREWScrew-csk-rd-cros,6x12; |
222B0612 |
US $2.83 |
||
| replacement | |||||
|
222
|
222
222AA0612 SCREWScrew-csk-rd-cros,6x12; |
222AA0612 |
from US $0.94 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMWasher-spring,10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGWasher-spring,10mm; |
461DA1000 |
from US $0.90 |
||
|
554
|
554
554A1000
PIN-SNAP,10MM
Pin-snap,10mm; |
554A1000 |
— | ||
| replacement | |||||
|
554
|
554
554DA1000 PIN-SNAP,10MMPin-snap,10mm; |
554DA1000 |
from US $0.91 |
||
|
11012
|
11012
11012-1259 CAP,SWING ARMCap,swing arm; |
11012-1259 |
from US $15.52 |
||
|
11012A
|
11012A
11012-1520 CAP,SWING ARMCap,swing arm; |
11012-1520 |
from US $5.76 |
||
|
12053
|
12053
12053-1194
GUIDE-CHAIN,UPP
Guide-chain,upp; |
12053-1194 |
— | ||
|
12053A
|
12053A
12053-1195
GUIDE-CHAIN,LWR
Guide-chain,lwr; |
12053-1195 |
— | ||
|
13070
|
13070
13070-1156
GUIDE,CHAIN
Guide,chain; |
13070-1156 |
— | ||
|
33001A
|
33001A
33001-1415-HN ARM-COMP-SWING,G.GRAYArm-comp-swing,g.gray; |
33001-1415-HN |
US $295.58 |
||
|
33032
|
33032
33032-1139
SHAFT-SWING ARM
|
33032-1139 |
— | ||
|
42036
|
42036
42036-1064 SLEEVE,SWING ARMSleeve,swing arm; |
42036-1064 |
from US $15.05 |
||
|
46102A
|
46102A
46102-1342-HN ROD,TORQUE,G.GRAYRod,torque,g.gray; |
46102-1342-HN |
US $11.47 |
||
|
55020A
|
55020A
55020-1636-HN
GUARD,CHAIN&DISC,G.GR
Guard,chain&disc,g.gray; |
55020-1636-HN |
— | ||
|
92002
|
92002
92002-1733 BOLT,10X28Bolt,10x28; |
92002-1733 |
from US $5.28 |
||
|
92009
|
92009
92009-1286 SCREW,6X10Screw,6x10,white; |
92009-1286 |
from US $2.69 |
||
|
92015
|
92015
92015-1407 NUT,14MMNut,14mm; |
92015-1407 |
from US $6.34 |
||
|
92015A
|
92015A
92015-1452 NUT,6MMNut,6mm; |
92015-1452 |
from US $2.95 |
||
|
92015B
|
92015B
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $7.04 |
||
|
92022
|
92022
92022-1804 WASHER 6.5X20X1.6TWasher,6.5x20x1.6; |
92022-1804 |
US $2.34 |
||
| replacements | |||||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer,6.5x20x1.6; |
92022-125 |
— | ||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer,6.5x20x1.6; |
92200-0283 |
from US $0.72 |
||
|
92028
|
92028
92028-1261 BUSHING,SWING ARMBushing,swing arm; |
92028-1261 |
from US $11.09 |
||
|
92046
|
92046
92046-1128 BEARING-NEEDLE,TA2030Bearing-needle,ta2030z; |
92046-1128 |
from US $21.07 |
||
