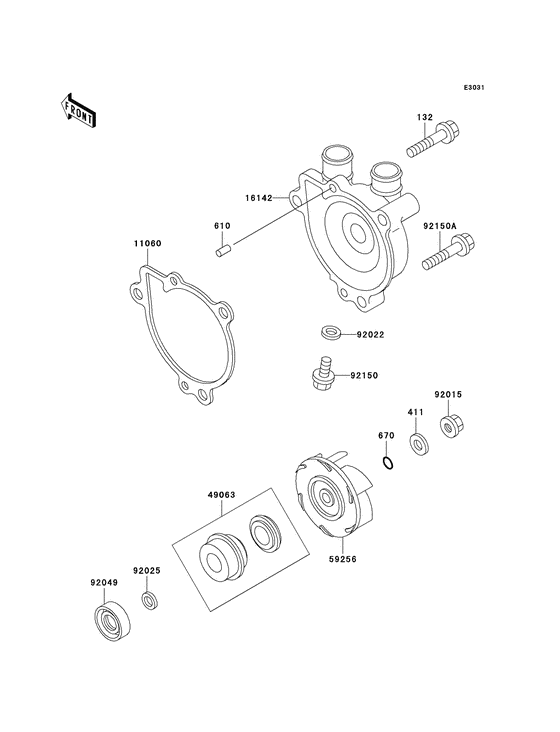

Water pump Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A18
- Engine Capacity
- 245
- Year
- 2004
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0645 BOLT,6X45 |
132J0645 |
US $36.70 |
||
| replacement | |||||
|
132
|
132
132BB0645 BOLT,6X45 |
132BB0645 |
from US $3.01 |
||
|
411
|
411
411F0600 WASHER-PLAIN,6.5X13X1Washer-plain,6mm,black; |
411F0600 |
from US $1.53 |
||
| replacement | |||||
|
411
|
411
411AB0600 WASHER-PLAIN,(6.5x13x1)Washer-plain,6mm,black; |
411AB0600 |
from US $0.63 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8Roller,4x8; |
610A0408 |
from US $1.07 |
||
|
670
|
670
670B1506 O RING,6M/MO ring,6mm; |
670B1506 |
from US $1.62 |
||
|
11060
|
11060
11060-1241 GASKET,PUMP COVERGasket,pump cover; |
11060-1241 |
from US $4.82 |
||
|
16142
|
16142
16142-1140 COVER-PUMP |
16142-1140 |
from US $62.52 |
||
|
49063
|
49063
49063-1056
SEAL-MECHANICAL
|
49063-1056 |
— | ||
| replacement | |||||
|
49063
|
49063
49063-0002 SEAL-MECHANICAL |
49063-0002 |
from US $16.66 |
||
|
59256
|
59256
59256-1055 IMPELLER |
59256-1055 |
from US $20.75 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut,flanged,6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-304 WASHER,PLAINWasher,6.2x11x1; |
92022-304 |
from US $2.53 |
||
|
92025
|
92025
92025-1507 SHIM,T=0.8Shim,t=0.8; |
92025-1507 |
from US $2.85 |
||
|
92049
|
92049
92049-1157 SEAL-OIL,SC10227Seal-oil,sc10227; |
92049-1157 |
from US $6.34 |
||
|
92150
|
92150
92150-1966 BOLTBolt,6x8; |
92150-1966 |
from US $2.30 |
||
|
92150A
|
92150A
92150-1967 BOLTBolt,6x35; |
92150-1967 |
from US $2.69 |
||
