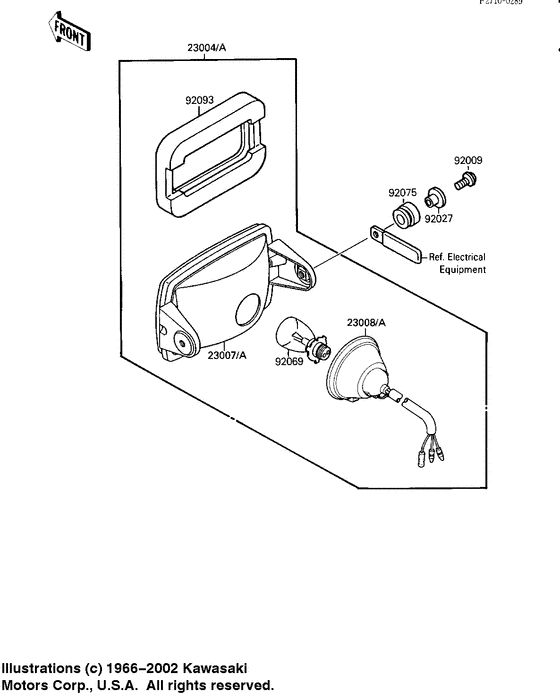

Headlight Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A2
- Engine Capacity
- 245
- Year
- 1988
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
92009
|
92009
92009-1664 SCREW |
92009-1664 |
from US $3.17 |
||
|
92027
|
92027
92027-1450 COLLAR,L=13.1,BLACKCollar,l=13.1,black; |
92027-1450 |
from US $3.64 |
||
|
92069
|
92069
92069-1061 BULB,12V 45/45WBulb,12v 45/45w; |
92069-1061 |
from US $8.55 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
|
92093
|
92093
92093-1222 SEAL,HEAD LAMPSeal,head lamp; |
92093-1222 |
from US $9.49 |
