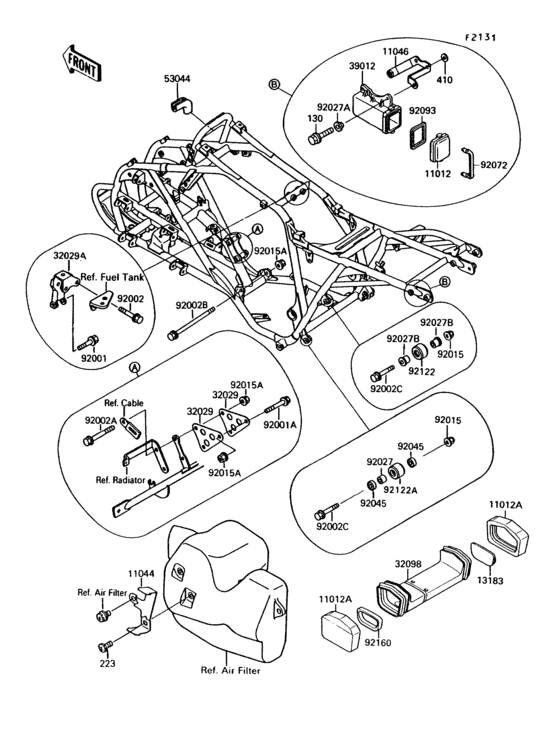

Frame fitting Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A5
- Engine Capacity
- 245
- Year
- 1991
- Sales region
- Canada
- Colour
- Polar White (F1)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0820 BOLT-FLANGED,8X20 |
130G0820 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20 |
130BA0820 |
from US $1.43 |
||
|
223
|
223
223C0610
SCREW-PAN-WS-CROS
|
223C0610 |
— | ||
| replacement | |||||
|
223
|
223
223AB0610 SCREW-PAN-WS-CROS |
223AB0610 |
from US $1.11 |
||
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8M |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
11012
|
11012
11012-1606 CAP,TOOL CASE |
11012-1606 |
from US $7.46 |
||
|
11012A
|
11012A
11012-1622 CAP,TOOL CASE |
11012-1622 |
US $4.05 |
||
|
11044
|
11044
11044-1932 BRACKET,IGNITER |
11044-1932 |
US $10.17 |
||
|
11046
|
11046
11046-1911 BRACKET,STORAGE CASE |
11046-1911 |
from US $16.65 |
||
|
13183
|
13183
13183-1220 PLATE,TOOL CASE |
13183-1220 |
US $6.35 |
||
|
32029
|
32029
32029-1474 BRACKET-ENGINE |
32029-1474 |
US $12.91 |
||
|
32029A
|
32029A
32029-1475 BRACKET-ENGINE,TOP |
32029-1475 |
from US $24.11 |
||
|
32098
|
32098
32098-1090 CASE-TOOL |
32098-1090 |
from US $25.20 |
||
|
39012
|
39012
39012-1055 CASE-STORAGE |
39012-1055 |
US $28.15 |
||
|
53044
|
53044
53044-1185 TRIM |
53044-1185 |
from US $3.64 |
||
|
92001
|
92001
92001-1579 BOLT,FLANGED,8X45 |
92001-1579 |
from US $3.11 |
||
|
92001A
|
92001A
92001-4021 BOLT,10X75 |
92001-4021 |
from US $5.54 |
||
|
92002
|
92002
92002-1182 BOLT,8X50 |
92002-1182 |
from US $5.70 |
||
|
92002A
|
92002A
92002-1764 BOLT,FLANGED,10X80 |
92002-1764 |
from US $4.51 |
||
|
92002B
|
92002B
92002-1765 BOLT,FLANGED,10X145 |
92002-1765 |
from US $6.68 |
||
|
92002C
|
92002C
92002-1857 BOLT |
92002-1857 |
US $3.64 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92015A
|
92015A
92015-1597 NUT,LOCK,10MM |
92015-1597 |
from US $7.04 |
||
|
92027
|
92027
92027-1081 COLLAR |
92027-1081 |
from US $5.60 |
||
|
92027A
|
92027A
92027-1354 COLLAR |
92027-1354 |
from US $2.79 |
||
|
92027B
|
92027B
92027-1383 COLLAR,CHAIN GUIDE |
92027-1383 |
US $4.05 |
||
|
92045
|
92045
92045-1227 BEARING,BALL |
92045-1227 |
US $27.68 |
||
| replacement | |||||
|
92045
|
92045
92045-1009 BEARING,BALL |
92045-1009 |
from US $24.98 |
||
|
92072
|
92072
92072-1226 BAND,TOOL CASE CAP |
92072-1226 |
from US $3.27 |
||
|
92093
|
92093
92093-1247 SEAL,TOOL CASE CAP |
92093-1247 |
from US $3.11 |
||
|
92122
|
92122
92122-1021 ROLLER,CHAIN GUIDE |
92122-1021 |
from US $7 |
||
|
92122A
|
92122A
92122-1102 ROLLER,CHAIN GUIDE |
92122-1102 |
from US $48.21 |
||
|
92160
|
92160
92160-1010 DAMPER,TOOL CASE |
92160-1010 |
US $6.08 |
||
