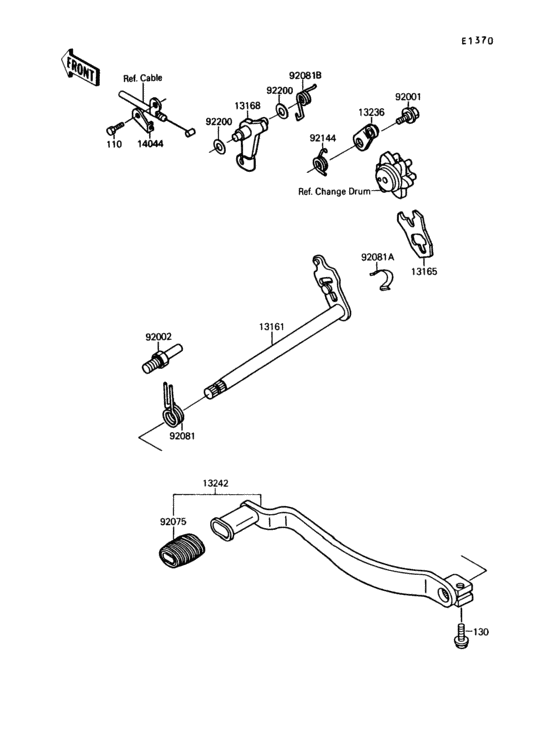

Gear change mechanism Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A5
- Engine Capacity
- 245
- Year
- 1991
- Sales region
- Canada
- Colour
- Polar White (F1)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110B0512 BOLT-UPSET |
110B0512 |
US $10.30 |
||
| replacement | |||||
|
110
|
110
112AA0512
BOLT-UPSET
|
112AA0512 |
— | ||
|
130
|
130
130S0620 BOLT-FLANGED,6X20,BLC |
130S0620 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLC |
130CB0620 |
from US $1.11 |
||
|
13161
|
13161
13161-1133
LEVER-COMP-CHANGE SHA
|
13161-1133 |
— | ||
| replacement | |||||
|
13161
|
13161
13161-1293
LEVER-COMP-CHANGE SHA
|
13161-1293 |
— | ||
|
13165
|
13165
13165-1034 PAWL,CHANGE LEVER |
13165-1034 |
from US $7.29 |
||
|
13168
|
13168
13168-1344
LEVER,REVERSE
|
13168-1344 |
— | ||
|
13236
|
13236
13236-1117 LEVER-COMP,CHANGE DRU |
13236-1117 |
from US $6.49 |
||
|
13242
|
13242
13242-1223 LEVER-ASSY-CHANGE,PED |
13242-1223 |
from US $51.35 |
||
|
14044
|
14044
14044-1072 HOLDER-CABLE |
14044-1072 |
from US $3.57 |
||
|
92001
|
92001
92001-1715 BOLT |
92001-1715 |
from US $6.65 |
||
|
92002
|
92002
92002-1355 BOLT,RETURN SPRING |
92002-1355 |
from US $7.13 |
||
|
92075
|
92075
92075-1585 DAMPER,CHANGE PEDAL |
92075-1585 |
US $6.49 |
||
| replacement | |||||
|
92075
|
92075
92161-2392 DAMPER,CHANGE PEDAL |
92161-2392 |
from US $7.79 |
||
|
92081
|
92081
92081-1750 SPRING,CHANGE PEDAL R |
92081-1750 |
from US $7.60 |
||
|
92081A
|
92081A
92081-1829 SPRING,CHANGE LEVER |
92081-1829 |
from US $5.70 |
||
|
92081B
|
92081B
92081-1998 SPRING,REVERSE LOCK |
92081-1998 |
from US $3.57 |
||
|
92144
|
92144
92144-1077 SPRING |
92144-1077 |
from US $3.89 |
||
|
92200
|
92200
92200-1039 WASHER |
92200-1039 |
from US $2.33 |
||
