	Description	OEM Part #	Price
11043	11043 11043-1931 BRACKET Bracket,clutch cable;	11043-1931	from US $5.63
13087	13087 13087-1001 HUB,CLUTCH	13087-1001	—
13088	13088 13088-1057 PLATE-FRICTION	13088-1057	from US $15.71
13089	13089 13089-013 PLATE CLUTCH STEEL Plate-clutch,t=1.6;	13089-013	from US $11.09
13095	13095 13095-1148 HOUSING-COMP-CLUTCH	13095-1148	US $419.85
13102	13102 13102-1064 RELEASE-COMP-CLUTCH	13102-1064	from US $45.48
13187	13187 13187-1008 PLATE-CLUTCH OPERATIN	13187-1008	US $72.25
	replacement
13187	13187 13187-1059 PLATE-CLUTCH OPERATIN	13187-1059	from US $72.25
46102	46102 46102-1033 ROD,CLUTCH PUSH Rod,clutch push;	46102-1033	US $20.59
92001	92001 92001-1576 BOLT,6X20 Bolt,clutch spring,6x18;	92001-1576	from US $3.96
	replacement
92001	92001 92153-1599 BOLT,6X20 Bolt,clutch spring,6x18;	92153-1599	from US $0.79
92002	92002 92002-1356 BOLT Bolt,clutch release;	92002-1356	from US $3.48
92022	92022 92022-112 WASHER THRUST Washer,20.5x30x1,steel;	92022-112	from US $5.54
92022A	92022A 92022-304 WASHER,PLAIN Washer,6.2x11x1;	92022-304	from US $2.53
92026	92026 92026-1274 SPACER,20.1X30X4 Spacer,20.1x30x4;	92026-1274	US $7.79
92033	92033 92033-029 CIRCLIP,18MM Ring-snap,18mm;	92033-029	from US $6.34
92045	92045 92045-1235 BEARING-BALL (12X28X8) Bearing-ball,6001c3ml01;	92045-1235	from US $16.42
92081	92081 92081-083 SPRING-CLUTCH Spring,clutch;	92081-083	from US $5.07
132	132 132J0612 BOLT-FLANGED-SMALL,6X	132J0612	—
	replacement
132	132 132BB0612 BOLT-FLANGED-SMALL,6X	132BB0612	from US $0.95
670	670 670B1509 O RING,9MM O ring,9mm;	670B1509	from US $2.53

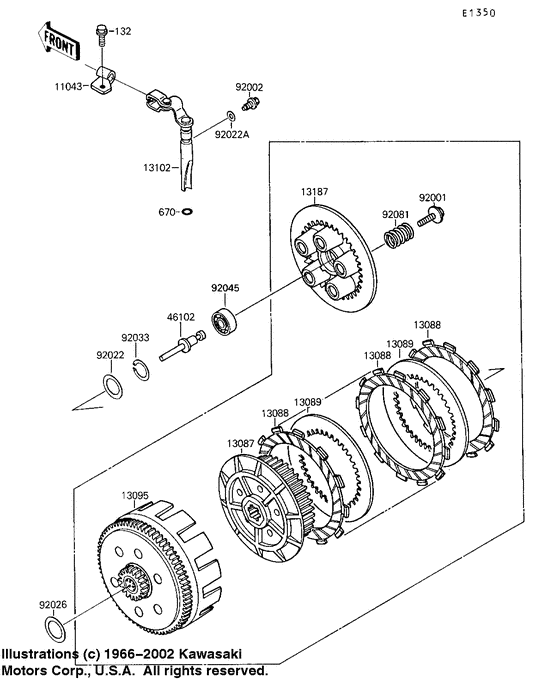

Clutch Diagram Kawasaki KSF250 Mojave 250 USA 10396511-683577

Clutch Diagram Kawasaki KSF250 Mojave 250 USA 10396511-683577
