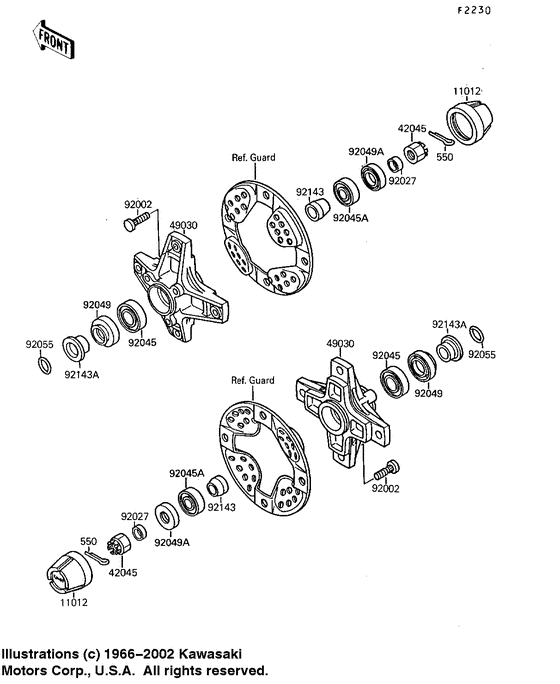

Front hub Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A6
- Engine Capacity
- 245
- Year
- 1992
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1519 CAP,WHEELCap,wheel; |
11012-1519 |
US $4.34 |
||
| replacement | |||||
|
11012
|
11012
11012-1969 CAP,WHEELCap,wheel; |
11012-1969 |
from US $5.33 |
||
|
42045
|
42045
42045014 NUTNut,castle,16mm; |
42045014 |
US $8.41 |
||
| replacement | |||||
|
42045
|
42045
92015-1947 NUTNut,castle,16mm; |
92015-1947 |
from US $6.34 |
||
|
49030
|
49030
49030-1084 HUB,FRHub,fr; |
49030-1084 |
from US $199.07 |
||
|
92002
|
92002
92002-1388 BOLT,10X30Bolt,10x30; |
92002-1388 |
from US $5.13 |
||
|
92027
|
92027
92027-1815 COLLAR,16.2X22X9Collar,16.0x22x9.5; |
92027-1815 |
from US $6.68 |
||
|
92045
|
92045
92045-1170 BEARING-BALL,60/222RSBearing-ball,60/222rs; |
92045-1170 |
from US $22.87 |
||
|
92045A
|
92045A
92045-1228
Bearing-ball
Bearing-ball,6203ddu2 av2s; |
92045-1228 |
— | ||
| replacement | |||||
|
92045A
|
92045A
601B6203UU BEARING-BALL,#6203UUCBearing-ball,6203ddu2 av2s; |
601B6203UU |
from US $18.85 |
||
|
92049
|
92049
92049-1260 SEAL-OIL,SDD4 28 44 8Seal-oil,sdd4 28 44 8; |
92049-1260 |
US $13.59 |
||
|
92049A
|
92049A
92049-1318 SEAL-OIL |
92049-1318 |
from US $5.39 |
||
|
92055
|
92055
92055-1293 RING-ORing-o,21.5mm; |
92055-1293 |
from US $3.01 |
||
|
92143
|
92143
92143-1007 COLLAR,L=25Collar,l=25; |
92143-1007 |
US $21.69 |
||
|
92143A
|
92143A
92143-1008 COLLAR,L=14.1Collar,l=14.1; |
92143-1008 |
US $39.19 |
||
|
550
|
550
550D4030 PIN-COTTER,4.0X30Pin-cotter,4.0x30; |
550D4030 |
from US $1.27 |
||
| replacement | |||||
|
550
|
550
550AA4030 PIN-COTTER,4.0X30Pin-cotter,4.0x30; |
550AA4030 |
from US $0.94 |
||
