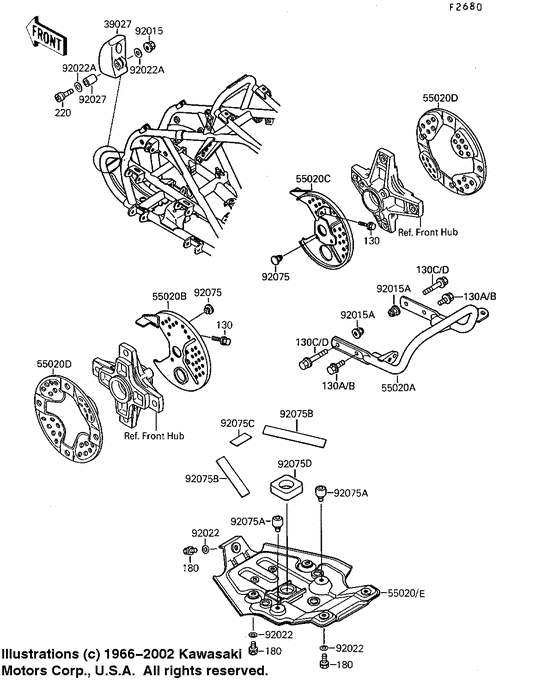

Guard Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A6
- Engine Capacity
- 245
- Year
- 1992
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39027
|
39027
39027-1051 BUMPER-FRONT |
39027-1051 |
from US $15.87 |
||
|
55020
|
55020
55020-1219 GUARD,ENGINEGuard,engine; |
55020-1219 |
US $68.44 |
||
|
55020A
|
55020A
55020-1221 GUARD,RRGuard,rr; |
55020-1221 |
US $37.37 |
||
| replacement | |||||
|
55020A
|
55020A
55020-1525 GUARD,RRGuard,rr; |
55020-1525 |
US $37.37 |
||
|
55020B
|
55020B
55020-1223 GUARD,INNER,LHGuard,front hub,inner,lh; |
55020-1223 |
from US $28.45 |
||
|
55020C
|
55020C
55020-1224 GUARD,INNER,RHGuard,front hub,inner,rh; |
55020-1224 |
from US $28.45 |
||
|
55020D
|
55020D
55020-1263
GUARD,FRONT HUB,OUTER
Guard,front hub,outer; |
55020-1263 |
— | ||
|
92015
|
92015
92015-1237 NUT,FLANGED,6MM,BLACKNut,flanged,6mm,black; |
92015-1237 |
US $2.84 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm,black; |
92015-1233 |
from US $3.90 |
||
|
92015A
|
92015A
92015-1432 NUT,8MMNut,8mm; |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer,6.5x20x1.6; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer,6.5x20x1.6; |
92200-0283 |
from US $0.72 |
||
|
92022A
|
92022A
92022-1344 WASHER,7X16X1.2Washer,7x16x1.2; |
92022-1344 |
from US $2.53 |
||
|
92027
|
92027
92027-1856 COLLAR,6.8X10X22Collar,6.8x10x20; |
92027-1856 |
from US $3.64 |
||
|
92075
|
92075
92075-1822 DAMPER,INNERDamper,inner; |
92075-1822 |
from US $2.95 |
||
|
92075A
|
92075A
92075-1828 DAMPER |
92075-1828 |
from US $3.27 |
||
|
92075B
|
92075B
92075-1829 DAMPER |
92075-1829 |
from US $4.05 |
||
|
92075C
|
92075C
92075-1830 DAMPER |
92075-1830 |
from US $3.80 |
||
|
92075D
|
92075D
92075-1872 DAMPER |
92075-1872 |
from US $12.28 |
||
|
130
|
130
130B0610
BOLT-FLANGED,6X10
Bolt-flanged,6x10; |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130BA0610 |
from US $0.79 |
||
|
130B
|
130B
130G0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130G0820 |
from US $1.27 |
||
| replacement | |||||
|
130B
|
130B
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.43 |
||
|
130D
|
130D
130G0860 BOLT-FLANGEDBolt-flanged,8x60; |
130G0860 |
from US $1.24 |
||
| replacement | |||||
|
130D
|
130D
130BA0860 BOLT-FLANGEDBolt-flanged,8x60; |
130BA0860 |
from US $1.56 |
||
|
180
|
180
180G0616 BOLT-UPSET-WS,6X16Bolt-upset-ws,6x16; |
180G0616 |
US $1.84 |
||
| replacement | |||||
|
180
|
180
180BA0616 BOLT-UPSET-WS,6X16Bolt-upset-ws,6x16; |
180BA0616 |
from US $1.11 |
||
|
220
|
220
220C0630
SCREW-PAN-CROSS
Screw-pan-cros,6x30,black; |
220C0630 |
— | ||
| replacement | |||||
|
220
|
220
220AB0630 SCREW-PAN-CROSSScrew-pan-cros,6x30,black; |
220AB0630 |
from US $1.11 |
||
