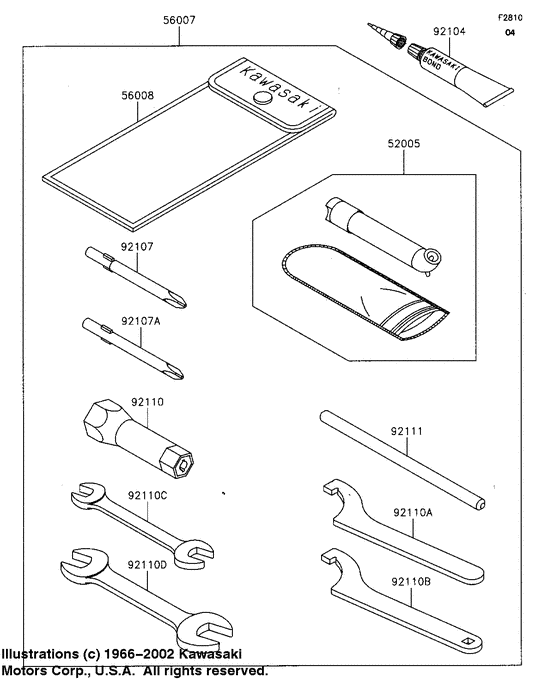

Tool Diagram Kawasaki KSF250 Mojave 250

Model code
KSF250-A6
Engine Capacity
245
Year
1992
Sales region
USA
Power
20 hp
Stroke (2-stroke or 4-stroke)
4 stroke
2WD/4WD/AWD
2WD

Difficulties in parts search?

Parts list
Tool

Difficulties in parts search?

Tool
Description OEM Part # Price
52005
52005

52005-1082

GAUGE,AIR

Gauge,air;

52005-1082

from US $44.19

56007
56007

56007-1326

TOOLKIT

56007-1326

US $136.55

replacement
56007
56007

56007-1495

TOOL-KIT

56007-1495

US $159.07

56008
56008
56008-1007
BAG,TOOL

Bag,tool;

56008-1007

replacement
56008
56008
56008-006
BAG,TOOL

Bag,tool;

56008-006

92104
92104
92104-002
Liquid gasket

Gasket-liquid,tube,100g,silver;

92104-002

replacements
92104
92104
92104-002-EU
Gasket-liquid,tb1105b #5

Gasket-liquid,tube,100g,silver;

92104-002-EU

92104
92104
K6107-901-2A
KAWABOND #5

Gasket-liquid,tube,100g,silver;

K6107-901-2A

92107
92107

92107005

TOOL-DRIVER,#3PHILLIP

Tool-driver,#3phillips;

92107005

US $10.91

replacement
92107
92107

92107-1002

TOOL-DRIVER,#3PHILLIP

Tool-driver,#3phillips;

92107-1002

from US $9.04

92107A
92107A

92107-1053

TOOL-DRIVER

Tool-driver,#2phillips;

92107-1053

US $8.41

replacement
92107A
92107A

92107-1052

TOOL-DRIVER

Tool-driver,#2phillips;

92107-1052

from US $7.62

92110
92110

92110-1111

TOOL-WRENCH

Tool-wrench,box,18mm;

92110-1111

from US $10.14

92110A
92110A

92110-1143

TOOL-WRENCH,HOOK

Tool-wrench,hook;

92110-1143

from US $12.67

92110B
92110B

92110-1144

TOOL-WRENCH,HOOK

Tool-wrench,hook;

92110-1144

from US $13.15

92110C
92110C

92110-1152

TOOL-WRENCH,OPEN END,

Tool-wrench,open end,10x12;

92110-1152

from US $12.99

92110D
92110D

92110-1153

TOOL-WRENCH,OPEN END,

Tool-wrench,open end,14x17;

92110-1153

from US $11.40

92111
92111

92111-1053

TOOL-BAR,8X150

Tool-bar,8x150;

92111-1053

from US $6.06

Tool Diagram Kawasaki KSF250 Mojave 250 USA 10396550-683577
