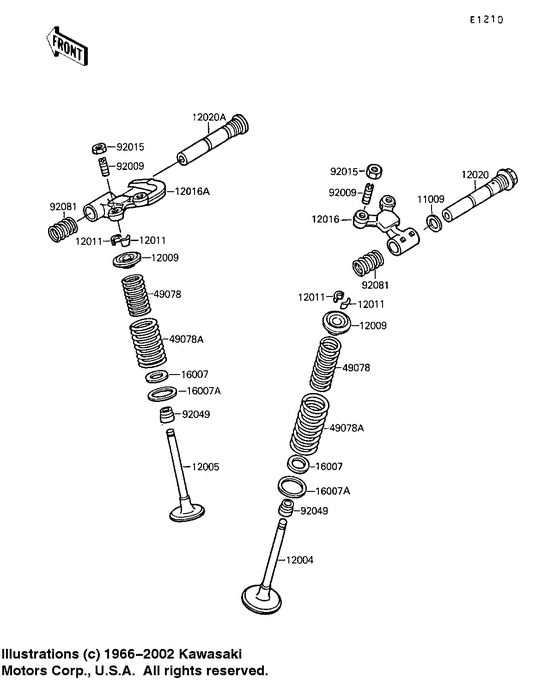

Valve Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A6
- Engine Capacity
- 245
- Year
- 1992
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1430 GASKET,14X18X1.5Gasket,14x18x1.5; |
11009-1430 |
from US $4.75 |
||
|
12004
|
12004
12004-1077
VALVE-INTAKE
|
12004-1077 |
— | ||
| replacement | |||||
|
12004
|
12004
12004-1119 VALVE-INTAKE |
12004-1119 |
from US $31.72 |
||
|
12005
|
12005
12005-1052 VALVE-EXHAUST |
12005-1052 |
from US $59.99 |
||
|
12009
|
12009
12009-1054 Retainer-valve spring |
12009-1054 |
from US $8.40 |
||
|
12011
|
12011
12011-1003 SPLIT KEEPER,VALVE SP |
12011-1003 |
from US $3.33 |
||
|
12016
|
12016
12016-1071 ARM-ROCKER,INTAKEArm-rocker,intake; |
12016-1071 |
from US $81.23 |
||
|
12016A
|
12016A
12016-1083
ARM-ROCKER
|
12016-1083 |
— | ||
|
12020
|
12020
12020-1055 SHAFT-ROCKER,INTAKEShaft-rocker,intake; |
12020-1055 |
from US $29.77 |
||
|
12020A
|
12020A
12020-1056 SHAFT-ROCKER,EXHAUSTShaft-rocker,exhaust; |
12020-1056 |
from US $29.77 |
||
|
16007
|
16007
16007-1143 SEAT-SPRING,12.1X16.2Seat-spring,12.1x16.2x0.5; |
16007-1143 |
US $3.94 |
||
| replacement | |||||
|
16007
|
16007
16007-1177 SEAT-SPRING,12.1X16.2Seat-spring,12.1x16.2x0.5; |
16007-1177 |
from US $4.12 |
||
|
16007A
|
16007A
16007-1144 SEAT-SPRING,17.5X23.8Seat-spring,17.5x23.8x0.5; |
16007-1144 |
US $4.82 |
||
| replacement | |||||
|
16007A
|
16007A
16007-1178 SEAT-SPRING,17.5X23.8Seat-spring,17.5x23.8x0.5; |
16007-1178 |
from US $4.59 |
||
|
49078
|
49078
49078-1051 SPRING-ENGINE VALVE,ISpring-engine valve,inner; |
49078-1051 |
from US $12.36 |
||
|
49078A
|
49078A
49078-1056 SPRING-ENGINE VALVE,OSpring-engine valve,outer; |
49078-1056 |
US $12.51 |
||
|
92009
|
92009
92009-1279 SCREW,7MMScrew,7mm; |
92009-1279 |
from US $7.13 |
||
|
92015
|
92015
92015-1325 NUT,7MMNut,7mm; |
92015-1325 |
from US $3.64 |
||
| replacement | |||||
|
92015
|
92015
92210-1492 NUT,7MMNut,7mm; |
92210-1492 |
from US $2.79 |
||
|
92049
|
92049
92049-1062 SEAL-OIL,RVC2-5.5X8.5Seal-oil,rvc2-5.5x8.5x8.3; |
92049-1062 |
from US $6.46 |
||
|
92081
|
92081
92081-1740 SPRING,ROCKER ARMSpring,rocker arm; |
92081-1740 |
from US $3.04 |
||
