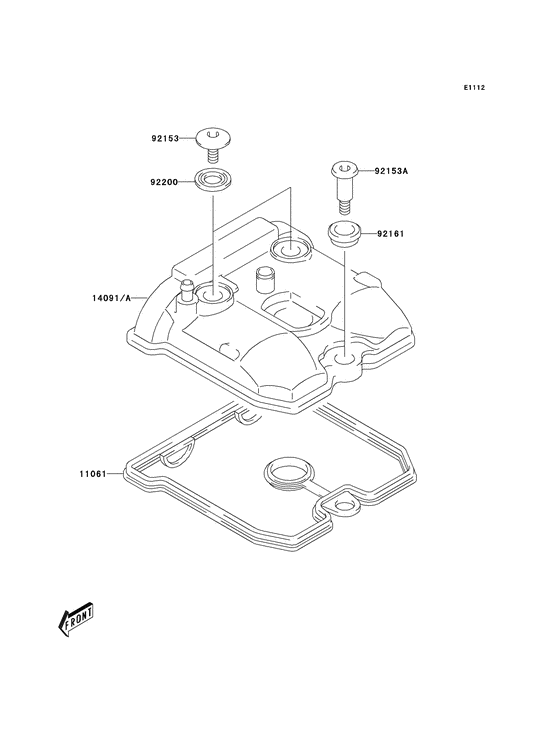

Cylinder head cover Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S069 GASKET,HEAD COVERGasket,head cover; |
11061-S069 |
US $40.38 |
||
|
14091
|
14091
14091-S079 Cover,cylinder headCover,cylinder head; |
14091-S079 |
US $133.97 |
||
|
92153
|
92153
92153-S280 BOLT,HEAD COVER,7X17.Bolt,head cover,7x17.5; |
92153-S280 |
US $4.19 |
||
| replacement | |||||
|
92153
|
92153
92153-S582 BOLT,HEAD COVER,7X17.Bolt,head cover,7x17.5; |
92153-S582 |
US $7.33 |
||
|
92153A
|
92153A
92153-S281 BOLT,HEAD COVER,7X31Bolt,head cover,7x31; |
92153-S281 |
US $6.61 |
||
|
92161
|
92161
92161-S092 DAMPER,HEAD COVER BOLDamper,head cover bolt; |
92161-S092 |
US $6.43 |
||
|
92200
|
92200
92200-S015 WASHER |
92200-S015 |
from US $3.17 |
||
