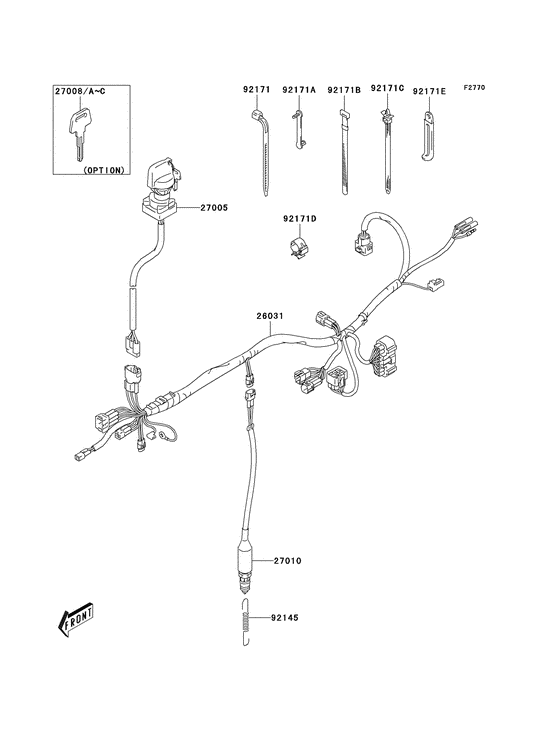

Ignition switch (A1) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26031
|
26031
26031-S003 HARNESS |
26031-S003 |
US $401.34 |
||
|
27005
|
27005
27005-S005 SWITCH-ASSY-IGNITION |
27005-S005 |
US $82.40 |
||
| replacement | |||||
|
27005
|
27005
27005-S021 Switch-Assy-Ignition |
27005-S021 |
US $103.29 |
||
|
27008
|
27008
27008-S002 KEY-LOCK,BLANKKey-lock,blank,(type:c); (option) |
27008-S002 |
US $10.10 |
||
|
27008A
|
27008A
27008-S003 KEY-LOCK,BLANKKey-lock,blank,(type:d); (option) |
27008-S003 |
US $10.10 |
||
|
27008B
|
27008B
27008-S006 KEY-LOCK,BLANKKey-lock,blank(type:e); (option) |
27008-S006 |
US $7.60 |
||
|
27008C
|
27008C
27008-S007 KEY-LOCK,BLANKKey-lock,blank(type:f); (option) |
27008-S007 |
US $7.60 |
||
|
27010
|
27010
27010-S026 SWITCH,STOP LAMPSwitch,stop lamp; |
27010-S026 |
US $69.91 |
||
| replacements | |||||
|
27010
|
27010
27010-S049 SWITCH,STOP LAMPSwitch,stop lamp; |
27010-S049 |
from US $41.05 |
||
|
27010
|
27010
27010-S057 Switch,Stop LampSwitch,stop lamp; |
27010-S057 |
US $75.77 |
||
|
92145
|
92145
92145-S150 SPRING,STOP LAMP SWITSpring,stop lamp switch; |
92145-S150 |
US $9.55 |
||
|
92171
|
92171
92171-S014 CLAMPClamp,l=125; |
92171-S014 |
from US $2.05 |
||
|
92171A
|
92171A
92171-S034 CLAMP,L:33Clamp,l=33; |
92171-S034 |
from US $1.58 |
||
|
92171B
|
92171B
92171-S035 CLAMP,L:120Clamp,l=120; |
92171-S035 |
from US $2.59 |
||
|
92171C
|
92171C
92171-S051 CLAMP,THROTTLE CABLEClamp,l=90; |
92171-S051 |
from US $1.49 |
||
|
92171D
|
92171D
92171-S095 CLAMP,WIRING HARNESSClamp,wiring harness; |
92171-S095 |
US $2.59 |
||
|
92171E
|
92171E
92171-S096 CLAMP,WIRING HARNESSClamp,l=135; |
92171-S096 |
US $2.50 |
||
