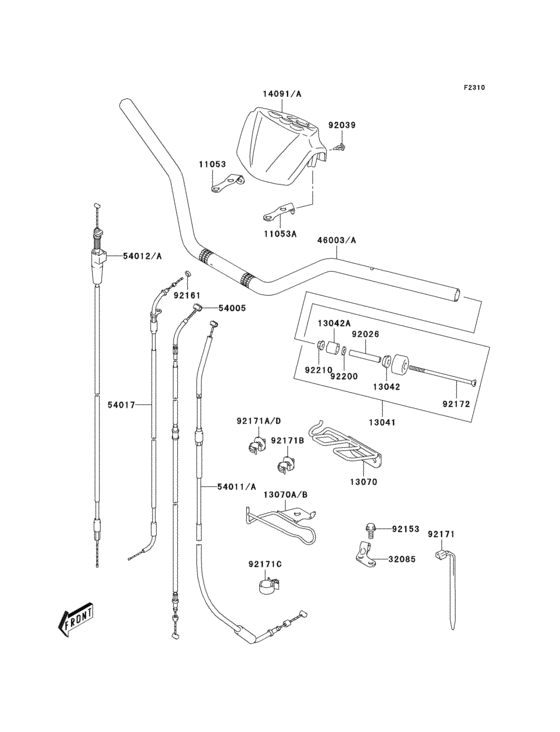

Handlebar Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Colour
- Lime Green (535)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S013 BRACKET,STEERING COVE |
11053-S013 |
US $9.79 |
||
|
11053A
|
11053A
11053-S014 BRACKET,STEERING COVE |
11053-S014 |
US $9.79 |
||
|
13041
|
13041
13041-S003 BALANCER,HANDLEBAR |
13041-S003 |
US $37.42 |
||
|
13042
|
13042
13042-S003 WEIGHT |
13042-S003 |
US $4.14 |
||
|
13042A
|
13042A
13042-S004 WEIGHT,HANDLE BALANCE |
13042-S004 |
US $4.14 |
||
|
13070
|
13070
13070-S011 GUIDE,CABLE |
13070-S011 |
US $28.60 |
||
|
13070A
|
13070A
13070-S012 GUIDE,PARKING CABLE |
13070-S012 |
US $14.60 |
||
| replacement | |||||
|
13070A
|
13070A
13070-S040 GUIDE,PARKING CABLE |
13070-S040 |
US $10.87 |
||
|
14091
|
14091
14091-S089-564 COVER,STEERING HEAD,B |
14091-S089-564 |
US $38.59 |
||
| replacement | |||||
|
14091
|
14091
14091-S183-564 COVER,STEERING HEAD,B |
14091-S183-564 |
US $28.03 |
||
|
32085
|
32085
32085-S012 STOPPER,CLUTCH CABLE |
32085-S012 |
US $9.79 |
||
|
46003
|
46003
46003-S007 HANDLE |
46003-S007 |
US $94.14 |
||
|
54005
|
54005
54005-S015 CABLE-BRAKE |
54005-S015 |
US $49.05 |
||
|
54011
|
54011
54011-S002 CABLE-CLUTCH |
54011-S002 |
US $38.91 |
||
|
54012
|
54012
54012-S007 CABLE-THROTTLE |
54012-S007 |
US $24.17 |
||
|
54017
|
54017
54017-S001 CABLE-STARTER |
54017-S001 |
US $46.90 |
||
|
92026
|
92026
92026-S098 SPACER |
92026-S098 |
US $6.26 |
||
|
92039
|
92039
92039-S005-506 RIVET,BLACK |
92039-S005-506 |
from US $2.22 |
||
|
92153
|
92153
92153-S259 BOLT,CABLE GUIDE |
92153-S259 |
US $1.49 |
||
|
92161
|
92161
92161-S086 DAMPER,STARTER CABLE |
92161-S086 |
US $3.32 |
||
|
92171
|
92171
92171-S014 CLAMP |
92171-S014 |
from US $2.05 |
||
|
92171A
|
92171A
92171-S092 CLAMP,BRAKE PIPE |
92171-S092 |
US $42.30 |
||
|
92171B
|
92171B
92171-S093 CLAMP,CLUTCH CABLE |
92171-S093 |
US $2.68 |
||
|
92171C
|
92171C
92171-S094 CLAMP,PARKING CABLE |
92171-S094 |
US $2.68 |
||
|
92172
|
92172
92172-S172 SCREW,BALANCER |
92172-S172 |
US $2.93 |
||
|
92200
|
92200
92200-S132 WASHER,SPROCKET COVER |
92200-S132 |
US $3.32 |
||
|
92210
|
92210
92210-S034 NUT |
92210-S034 |
from US $1.78 |
||
