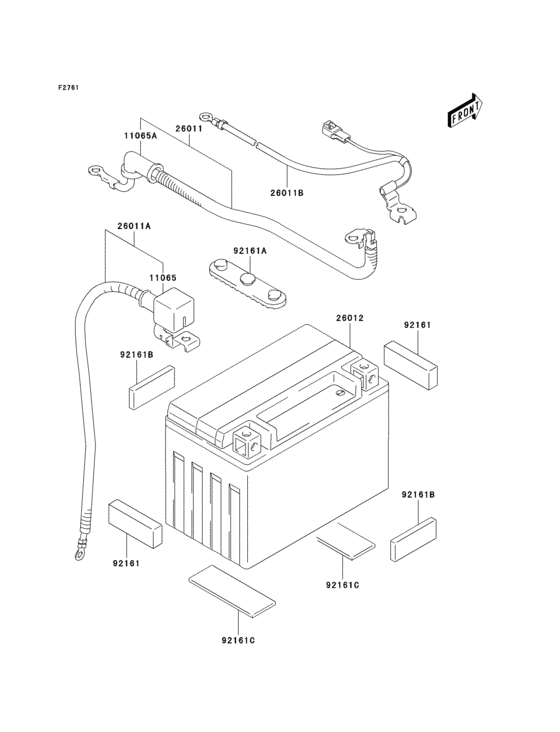

Battery Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S037 CAP,BATTERY PLUS |
11065-S037 |
US $4.86 |
||
|
11065A
|
11065A
11065-S040 CAP,STARTER MOTOR TER |
11065-S040 |
US $5 |
||
|
26011
|
26011
26011-S013 WIRE-LEAD |
26011-S013 |
US $38.20 |
||
|
26011A
|
26011A
26011-S014 WIRE-LEAD |
26011-S014 |
US $26.59 |
||
|
26011B
|
26011B
26011-S015 WIRE-LEAD |
26011-S015 |
US $42.43 |
||
|
26012
|
26012
26012-S005 YTX9-BS,12V 8AH |
26012-S005 |
US $147.01 |
||
| replacements | |||||
|
26012
|
26012
XYYTX9BS
Ytx9-bs
|
XYYTX9BS |
— | ||
|
26012
|
26012
26012-0838 BATTERY,YTX9-BS,12V 8 |
26012-0838 |
from US $147.55 |
||
|
26012
|
26012
26012-1524 Battery,Ytx9-Bs,12V 8 |
26012-1524 |
US $170.85 |
||
|
92161
|
92161
92161-S094 DAMPER,20X50X11 |
92161-S094 |
US $2.75 |
||
| replacement | |||||
|
92161
|
92161
92161-S183 DAMPER,20X50X11 |
92161-S183 |
US $2.75 |
||
|
92161A
|
92161A
92161-S096 DAMPER |
92161-S096 |
US $3.67 |
||
|
92161B
|
92161B
92161-S097 DAMPER,70X100X6 |
92161-S097 |
US $3.80 |
||
| replacement | |||||
|
92161B
|
92161B
92161-S182 DAMPER,70X100X6 |
92161-S182 |
US $3.80 |
||
|
92161C
|
92161C
92161-S098 DAMPER |
92161-S098 |
US $2.50 |
||
