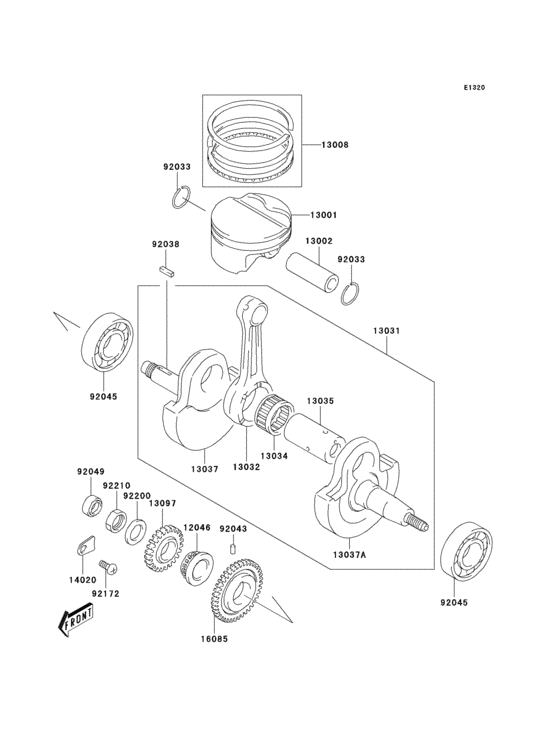

Crankshaft/piston(s) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12046
|
12046
12046-S005 SPROCKET,CAM CHAIN |
12046-S005 |
US $48.78 |
||
|
13001
|
13001
13001-S006 PISTON-ENGINE |
13001-S006 |
US $176.60 |
||
|
13002
|
13002
13002-S006 PIN-PISTON |
13002-S006 |
US $23.46 |
||
|
13008
|
13008
13008-S008 RING-SET-PISTON |
13008-S008 |
US $75.91 |
||
|
13031
|
13031
13031-S006 Crankshaft-comp |
13031-S006 |
US $559.31 |
||
| replacement | |||||
|
13031
|
13031
13031-S015 Crankshaft-comp |
13031-S015 |
US $638.96 |
||
|
13032
|
13032
13032-S007 Rod-connecting |
13032-S007 |
US $152.86 |
||
| replacements | |||||
|
13032
|
13032
13032-S012 ROD-CONNECTING |
13032-S012 |
US $218.83 |
||
|
13032
|
13032
13032-S010 ROD-CONNECTING |
13032-S010 |
US $218.83 |
||
|
13034
|
13034
13034-S006 Bearing-big end |
13034-S006 |
US $51.98 |
||
| replacements | |||||
|
13034
|
13034
13034-S011 BEARING-BIG END |
13034-S011 |
US $76.53 |
||
|
13034
|
13034
13034-S009 BEARING-BIG END |
13034-S009 |
US $57.91 |
||
|
13035
|
13035
13035-S006 Pin-crank |
13035-S006 |
US $51.62 |
||
| replacements | |||||
|
13035
|
13035
13035-S012 PIN-CRANK |
13035-S012 |
US $60.21 |
||
|
13035
|
13035
13035-S010 PIN-CRANK |
13035-S010 |
US $60.21 |
||
|
13037
|
13037
13037-S011 CRANKSHAFT,RH |
13037-S011 |
US $254.48 |
||
|
13037A
|
13037A
13037-S012 CRANKSHAFT,LH |
13037-S012 |
US $277.79 |
||
|
13097
|
13097
13097-S005 GEAR-PRIMARY SPUR |
13097-S005 |
US $48.56 |
||
|
14020
|
14020
14020-S009 RETAINER |
14020-S009 |
US $3.35 |
||
|
16085
|
16085
16085-S004 GEAR,CRANK BALANCER |
16085-S004 |
US $102.17 |
||
|
92033
|
92033
92033-S040 RING-SNAP,PISTON PIN |
92033-S040 |
US $2.48 |
||
|
92038
|
92038
92038-S006 KEY,PRIMARY DRIVE GEA |
92038-S006 |
US $5.81 |
||
|
92043
|
92043
92043-S008 PIN,5X8 |
92043-S008 |
from US $1.43 |
||
|
92045
|
92045
92045-S054 BEARING-BALL,CRANKSHA |
92045-S054 |
US $85.94 |
||
|
92049
|
92049
92049-S048 SEAL-OIL,CRANKSHAFT,R |
92049-S048 |
US $9.93 |
||
|
92172
|
92172
92172-S166 SCREW |
92172-S166 |
US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S330 SCREW |
92172-S330 |
US $1.21 |
||
|
92200
|
92200
92200-S140 WASHER |
92200-S140 |
US $64.60 |
||
|
92210
|
92210
92210-S102 NUT,PRIMARY DRIVE GEA |
92210-S102 |
US $10.10 |
||
