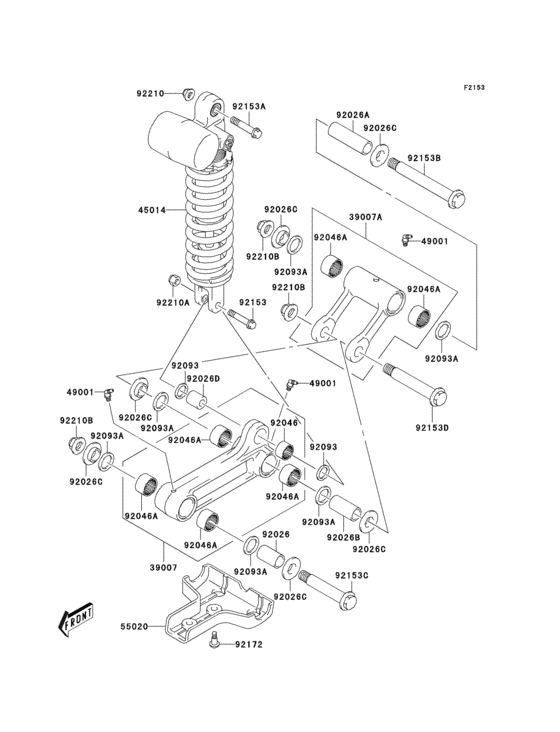

Rear suspension Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39007
|
39007
39007-S011 ARM-SUSP |
39007-S011 |
US $349.13 |
||
|
39007A
|
39007A
39007-S012 ARM-SUSP |
39007-S012 |
US $276.50 |
||
| replacement | |||||
|
39007A
|
39007A
39007-S019 ARM-SUSP |
39007-S019 |
US $197.91 |
||
|
45014
|
45014
45014-S019-535
Shock Absorber
|
45014-S019-535 |
— | ||
| replacement | |||||
|
45014
|
45014
45014-S037-535
Shock Absorber
|
45014-S037-535 |
— | ||
|
49001
|
49001
49001-S003 NIPPLE-GREASE |
49001-S003 |
US $3.64 |
||
| replacement | |||||
|
49001
|
49001
49001-S005 NIPPLE-GREASE |
49001-S005 |
from US $2.65 |
||
|
55020
|
55020
55020-S019 GUARD |
55020-S019 |
US $25.04 |
||
|
92026
|
92026
92026-S101 SPACER |
92026-S101 |
US $16.40 |
||
|
92026A
|
92026A
92026-S102 SPACER |
92026-S102 |
US $21.98 |
||
|
92026B
|
92026B
92026-S103 SPACER |
92026-S103 |
US $18.58 |
||
|
92026C
|
92026C
92026-S104 SPACER |
92026-S104 |
US $13.39 |
||
|
92026D
|
92026D
92026-S105 SPACER |
92026-S105 |
US $12.89 |
||
|
92046
|
92046
92046-S017 BEARING-NEEDLE |
92046-S017 |
US $22.91 |
||
|
92046A
|
92046A
92046-S018 BEARING-NEEDLE |
92046-S018 |
US $18.94 |
||
|
92093
|
92093
92093-S032 SEAL |
92093-S032 |
US $4.18 |
||
|
92093A
|
92093A
92093-S041 SEAL |
92093-S041 |
US $8.70 |
||
|
92153
|
92153
92153-S273 BOLT |
92153-S273 |
US $3.35 |
||
|
92153A
|
92153A
92153-S300 BOLT |
92153-S300 |
US $3.55 |
||
|
92153B
|
92153B
92153-S301 BOLT |
92153-S301 |
US $20.52 |
||
|
92153C
|
92153C
92153-S303 BOLT |
92153-S303 |
US $21.23 |
||
|
92153D
|
92153D
92153-S307 BOLT |
92153-S307 |
US $17.84 |
||
|
92172
|
92172
92172-S175 SCREW,GUARD |
92172-S175 |
US $4.47 |
||
|
92210
|
92210
92210-S015 NUT |
92210-S015 |
from US $3.64 |
||
| replacement | |||||
|
92210
|
92210
92210-S186 NUT |
92210-S186 |
US $7.33 |
||
|
92210A
|
92210A
92210-S105 NUT |
92210-S105 |
US $5.47 |
||
|
92210B
|
92210B
92210-S106 NUT |
92210-S106 |
US $9.50 |
||
