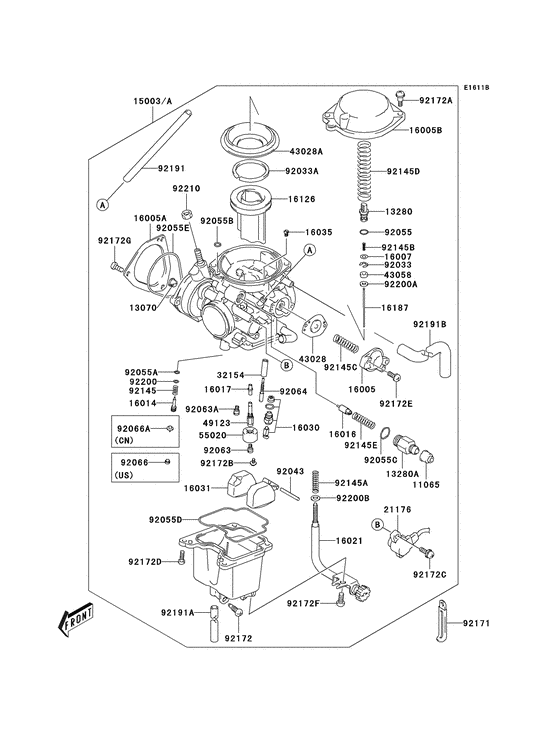

Carburetor (A3) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S020 CAP |
11065-S020 |
US $4.57 |
||
|
13070
|
13070
13070-S010 GUIDE |
13070-S010 |
US $9.62 |
||
|
13280
|
13280
13280-S002 HOLDER |
13280-S002 |
from US $3.96 |
||
|
13280A
|
13280A
13280-S038 HOLDER |
13280-S038 |
US $25.11 |
||
|
15003
|
15003
15003-S020
Carburetor-assy
|
15003-S020 |
— | ||
|
15003A
|
15003A
15003-S021 CARBURETOR-ASSY |
15003-S021 |
US $773.50 |
||
|
16005
|
16005
16005-S004 TOP-CHAMBER |
16005-S004 |
US $31.01 |
||
|
16005A
|
16005A
16005-S005 TOP-CHAMBER,THROTTLETop-chamber,throttle; |
16005-S005 |
US $16.85 |
||
|
16005B
|
16005B
16005-S011 TOP-CHAMBER,DIAPHRAGMTop-chamber,diaphragm; |
16005-S011 |
US $34.81 |
||
|
16007
|
16007
16007-S005 SEAT-SPRING |
16007-S005 |
US $5.95 |
||
|
16014
|
16014
16014-S010 SCREW-PILOT AIR |
16014-S010 |
US $8.19 |
||
|
16016
|
16016
16016-S007 PLUNGER |
16016-S007 |
US $29.19 |
||
|
16017
|
16017
16017-S005 JET-NEEDLE,P-0MJet-needle,p-0m; |
16017-S005 |
US $51.34 |
||
|
16021
|
16021
16021-S005 SCREW-THROTTLE STOP |
16021-S005 |
US $84.63 |
||
|
16030
|
16030
16030-S006 VALVE-FLOAT |
16030-S006 |
US $54.61 |
||
| replacement | |||||
|
16030
|
16030
16030-S011 Valve-Float |
16030-S011 |
US $79.73 |
||
|
16031
|
16031
16031-S006 FLOAT |
16031-S006 |
US $40.53 |
||
|
16035
|
16035
16035-S006 JET-AIR |
16035-S006 |
US $19.94 |
||
|
16126
|
16126
16126-S010 VALVE |
16126-S010 |
US $78.73 |
||
|
16187
|
16187
16187-S007 NEEDLE-JET,5E26-1Needle-jet,5e26-1; |
16187-S007 |
US $19.13 |
||
|
21176
|
21176
21176-S001 SENSOR |
21176-S001 |
from US $90.81 |
||
| replacement | |||||
|
21176
|
21176
21176-S029 SENSOR |
21176-S029 |
US $148.26 |
||
|
32154
|
32154
32154-S004 Pipe |
32154-S004 |
US $10.42 |
||
|
43028
|
43028
43028-S008 DIAPHRAGM |
43028-S008 |
US $21.65 |
||
| replacement | |||||
|
43028
|
43028
43028-S016 Diaphragm |
43028-S016 |
US $26.96 |
||
|
43028A
|
43028A
43028-S009 DIAPHRAGM |
43028-S009 |
US $34.20 |
||
| replacement | |||||
|
43028A
|
43028A
43028-S018 Diaphragm |
43028-S018 |
US $41.57 |
||
|
43058
|
43058
43058-S001 RING |
43058-S001 |
from US $5.39 |
||
|
49123
|
49123
49123-S008 HOLDER-MAIN JET |
49123-S008 |
US $34.02 |
||
|
55020
|
55020
55020-S039 GUARD,JETGuard,jet; |
55020-S039 |
US $38.44 |
||
|
92033
|
92033
92033-S008 RING-SNAP,MULTIPLE JERing-snap,multiple jet; |
92033-S008 |
from US $1.49 |
||
|
92033A
|
92033A
92033-S041 RING-SNAP |
92033-S041 |
US $8.26 |
||
|
92043
|
92043
92043-S034 PIN |
92043-S034 |
US $6.05 |
||
|
92055
|
92055
92055-S003 RING-O,ID:4.8Ring-o,id:4.8; |
92055-S003 |
from US $2.53 |
||
|
92055A
|
92055A
92055-S013 RING-O |
92055-S013 |
from US $2.85 |
||
| replacement | |||||
|
92055A
|
92055A
92055-S124 Ring-O |
92055-S124 |
US $6.99 |
||
|
92055B
|
92055B
92055-S044 RING-O |
92055-S044 |
US $7.21 |
||
|
92055C
|
92055C
92055-S048 RING-O |
92055-S048 |
US $1.75 |
||
| replacement | |||||
|
92055C
|
92055C
92055-S121 Ring-O |
92055-S121 |
US $3.37 |
||
|
92055D
|
92055D
92055-S058 RING-O |
92055-S058 |
US $11.90 |
||
|
92055E
|
92055E
92055-S065 RING-O |
92055-S065 |
US $9.62 |
||
|
92063
|
92063
92063-S007 JET-MAIN,#130Jet-main,#130; |
92063-S007 |
US $16.73 |
||
|
92063A
|
92063A
92063-S008 JET-MAIN,#60Jet-main,#60; |
92063-S008 |
US $16.73 |
||
|
92064
|
92064
92064-S008 JET-PILOT,#22.5Jet-pilot,#22.5; |
92064-S008 |
US $16.73 |
||
|
92066
|
92066
92066-S027 PLUG |
92066-S027 |
US $4.27 |
||
|
92066A
|
92066A
92066-S041 PLUG |
92066-S041 |
US $4 |
||
|
92145
|
92145
92145-S010 SPRING,THROTTLE SCREWSpring,throttle screw; |
92145-S010 |
from US $3.01 |
||
|
92145A
|
92145A
92145-S095 SPRING |
92145-S095 |
US $4.14 |
||
|
92145B
|
92145B
92145-S097 SPRING |
92145-S097 |
US $5.95 |
||
|
92145C
|
92145C
92145-S098 SPRING |
92145-S098 |
US $6.21 |
||
|
92145D
|
92145D
92145-S099 SPRING |
92145-S099 |
US $13.36 |
||
|
92145E
|
92145E
92145-S109 SPRING |
92145-S109 |
US $10.05 |
||
|
92171
|
92171
92171-S132 CLAMP,OIL HOSE NO.2Clamp,l=45; |
92171-S132 |
from US $2.22 |
||
|
92172
|
92172
92172-S046 SCREW,DRAINScrew,drain; |
92172-S046 |
from US $3.64 |
||
|
92172A
|
92172A
92172-S047 SCREW |
92172-S047 |
from US $2.22 |
||
|
92172B
|
92172B
92172-S048 SCREW |
92172-S048 |
from US $3.17 |
||
|
92172C
|
92172C
92172-S049 SCREW |
92172-S049 |
from US $2.53 |
||
|
92172D
|
92172D
92172-S057 SCREW |
92172-S057 |
from US $1.27 |
||
|
92172E
|
92172E
92172-S139 SCREW |
92172-S139 |
US $4.23 |
||
|
92172F
|
92172F
92172-S164 SCREW |
92172-S164 |
US $2.26 |
||
|
92172G
|
92172G
92172-S180 SCREW |
92172-S180 |
US $1.19 |
||
| replacement | |||||
|
92172G
|
92172G
92172-S369 SCREW |
92172-S369 |
from US $0.94 |
||
|
92191
|
92191
92191-S054 TUBE,5X9X175Tube,5x9x175; |
92191-S054 |
US $6.62 |
||
| replacement | |||||
|
92191
|
92191
92191-S089 Tube,5X9X175Tube,5x9x175; |
92191-S089 |
US $4.88 |
||
|
92191A
|
92191A
92191-S058 TUBE |
92191-S058 |
US $15.79 |
||
|
92191B
|
92191B
92191-S059 TUBE |
92191-S059 |
US $25.33 |
||
|
92200
|
92200
92200-S019 WASHER |
92200-S019 |
from US $2.22 |
||
|
92200A
|
92200A
92200-S083 WASHER |
92200-S083 |
US $5.36 |
||
|
92200B
|
92200B
92200-S151 WASHER |
92200-S151 |
US $2.52 |
||
|
92210
|
92210
92210-S121 NUT |
92210-S121 |
US $2.92 |
||
