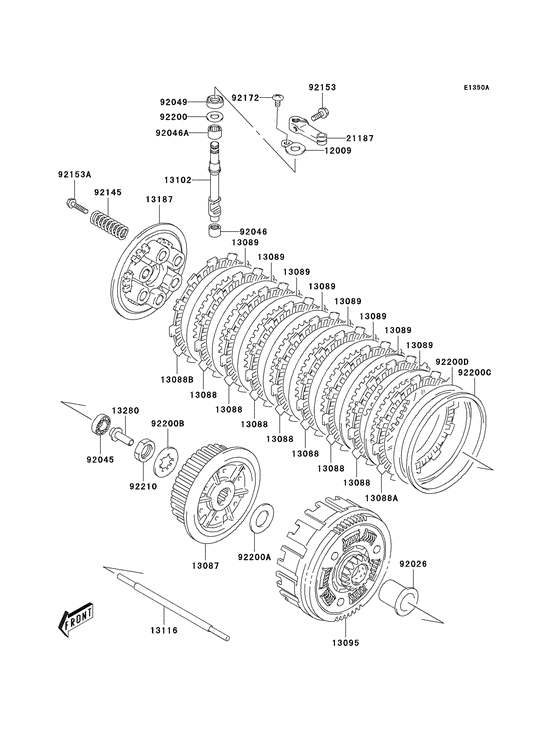

Clutch (A3) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12009
|
12009
12009-S003 Retainer-valve spring |
12009-S003 |
US $6.78 |
||
|
13087
|
13087
13087-S007 Hub-clutch |
13087-S007 |
US $150.54 |
||
|
13088
|
13088
13088-S003 PLATE-FRICTION,NO.1Plate-friction,no.1; |
13088-S003 |
US $21.27 |
||
|
13088A
|
13088A
13088-S004 PLATE-FRICTION,NO.2Plate-friction,no.2; |
13088-S004 |
US $21.27 |
||
|
13088B
|
13088B
13088-S009 PLATE-FRICTION |
13088-S009 |
US $17.56 |
||
|
13089
|
13089
13089-S003 PLATE-CLUTCH |
13089-S003 |
US $10.76 |
||
|
13095
|
13095
13095-S011 HOUSING-COMP-CLUTCH |
13095-S011 |
US $428.38 |
||
|
13102
|
13102
13102-S003 RELEASE-COMP-CLUTCH |
13102-S003 |
US $56.08 |
||
|
13116
|
13116
13116-S003 ROD-PUSH |
13116-S003 |
US $19.80 |
||
|
13187
|
13187
13187-S006 PLATE-CLUTCH OPERATIN |
13187-S006 |
US $78.47 |
||
|
13280
|
13280
13280-S025 HOLDER,CLUTCH PUSHHolder,clutch push; |
13280-S025 |
US $20.38 |
||
|
21187
|
21187
21187-S004 ARM-ASSY,CLUTCH RELEAArm-assy,clutch release; |
21187-S004 |
US $38.57 |
||
|
92026
|
92026
92026-S094 SPACER |
92026-S094 |
US $52.41 |
||
|
92045
|
92045
92045-S004 BEARING-BALL,12X28X8Bearing-ball,12x28x8; |
92045-S004 |
from US $14.73 |
||
|
92046
|
92046
92046-S014 BEARING-NEEDLE,CAM SHBearing-needle,cam shaft,low; |
92046-S014 |
US $15.62 |
||
|
92046A
|
92046A
92046-S015 BEARING-NEEDLE,CAM SHBearing-needle,cam shaft,upp; |
92046-S015 |
US $14.79 |
||
|
92049
|
92049
92049-S018 SEAL-OIL,10X20X6Seal-oil,10x20x6; |
92049-S018 |
US $10.44 |
||
|
92145
|
92145
92145-S100 SPRING,CLUTCHSpring,clutch; |
92145-S100 |
US $10.18 |
||
|
92153
|
92153
92153-S001 BOLT |
92153-S001 |
from US $0.95 |
||
| replacement | |||||
|
92153
|
92153
92153-S563 BOLT |
92153-S563 |
US $2.48 |
||
|
92153A
|
92153A
92153-S469 BOLT |
92153-S469 |
US $7.74 |
||
|
92172
|
92172
92172-S092 SCREW |
92172-S092 |
US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S316 SCREW |
92172-S316 |
US $2.48 |
||
|
92200
|
92200
92200-S061 WASHER,10X20X1.0Washer,10x20x1.0; |
92200-S061 |
US $3.37 |
||
|
92200A
|
92200A
92200-S131 WASHER,CLUTCHWasher,clutch; |
92200-S131 |
US $78.20 |
||
|
92200B
|
92200B
92200-S144 WASHER,CLUTCHWasher,clutch; |
92200-S144 |
US $2.81 |
||
|
92200C
|
92200C
92200-S185 WASHER |
92200-S185 |
US $13.43 |
||
|
92200D
|
92200D
92200-S186 WASHER |
92200-S186 |
US $21.51 |
||
|
92210
|
92210
92210-S103 NUT,CLUTCHNut,clutch; |
92210-S103 |
US $5.90 |
||
