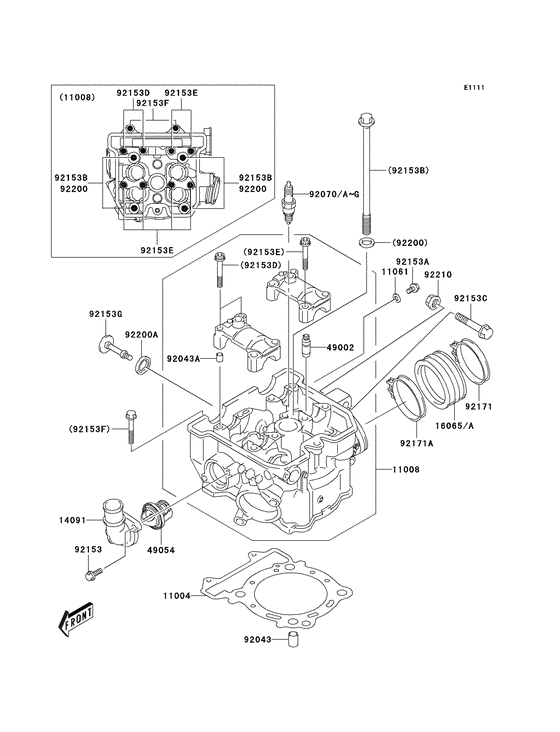

Cylinder head Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11004
|
11004
11004-S006 GASKET-HEAD |
11004-S006 |
US $46.55 |
||
|
11008
|
11008
11008-S004
HEAD-COMP-CYLINDER
|
11008-S004 |
— | ||
|
11061
|
11061
11061-S001 GASKET,5.8X13X1.2Gasket,5.8x13x1.2; |
11061-S001 |
from US $2.22 |
||
|
14091
|
14091
14091-S081 COVER,THERMOSTATCover,thermostat; |
14091-S081 |
US $30.80 |
||
|
16065A
|
16065A
16065-S014 HOLDER-CARBURETOR |
16065-S014 |
US $13.95 |
||
| replacement | |||||
|
16065A
|
16065A
16065-S017 Holder-Carburetor |
16065-S017 |
US $17.53 |
||
|
49002
|
49002
49002-S003 GUIDE-VALVE |
49002-S003 |
US $19.45 |
||
|
49054
|
49054
49054-S005 THERMOSTAT,WATERThermostat,water; |
49054-S005 |
US $45.50 |
||
| replacement | |||||
|
49054
|
49054
49054-S007 Thermostat,WaterThermostat,water; |
49054-S007 |
US $54.86 |
||
|
92043
|
92043
92043-S003 PIN |
92043-S003 |
from US $1.90 |
||
|
92043A
|
92043A
92043-S004 PIN,6.2X8X11Pin,6.2x8x11; |
92043-S004 |
from US $2.22 |
||
|
92070
|
92070
92070-S001 KA SPARK PLUG CR8EPlug-spark,cr8e(ngk); (option) |
92070-S001 |
from US $11.72 |
||
| replacement | |||||
|
92070
|
92070
92070-0019 KA SPARK PLUG CR8EPlug-spark,cr8e(ngk); (option) |
92070-0019 |
from US $10.80 |
||
|
92070A
|
92070A
92070-S002 SPARK PLUG U24ESR-NPlug-spark,u24esr-n(nd); (option) |
92070-S002 |
from US $5.20 |
||
|
92070B
|
92070B
92070-S003 KA SPARK PLUG CR9EPlug-spark,cr9e(ngk); (option) |
92070-S003 |
from US $11.72 |
||
| replacement | |||||
|
92070B
|
92070B
92070-1266 KA SPARK PLUG CR9EPlug-spark,cr9e(ngk); (option) |
92070-1266 |
US $11.72 |
||
|
92070C
|
92070C
92070-S004 SPARK PLUG, N27ESR-NPlug-spark,u27esr-n(nd); (option) |
92070-S004 |
from US $11.72 |
||
|
92070D
|
92070D
92070-S005 SPARK PLUG U22ESR-NPlug-spark,u22esr-n(nd); |
92070-S005 |
from US $2.32 |
||
|
92070E
|
92070E
92070-S006 KA SPARK PLUG CR7EPlug-spark,cr7e(ngk); |
92070-S006 |
from US $11.72 |
||
| replacement | |||||
|
92070E
|
92070E
92070-1209 SPARK PLUG, CR7E(NGK)Plug-spark,cr7e(ngk); |
92070-1209 |
from US $9 |
||
|
92070F
|
92070F
92070-S020 SPARK PLUG, CR6EPlug-spark,cr6e(ngk); (option) |
92070-S020 |
US $72.70 |
||
|
92070G
|
92070G
92070-S021 SPARK PLUG, U20ESRPlug-spark,u20esr(dn); (option) |
92070-S021 |
US $53.80 |
||
|
92153
|
92153
92153-S001 BOLT |
92153-S001 |
from US $0.95 |
||
| replacement | |||||
|
92153
|
92153
92153-S563 BOLT |
92153-S563 |
US $2.48 |
||
|
92153A
|
92153A
92153-S010 BOLT |
92153-S010 |
from US $1.27 |
||
| replacements | |||||
|
92153A
|
92153A
92153-S501 BOLT |
92153-S501 |
from US $0.94 |
||
|
92153A
|
92153A
92153-3758 BOLT |
92153-3758 |
from US $22.89 |
||
|
92153B
|
92153B
92153-S036 BOLT,10X175Bolt,10x175; |
92153-S036 |
from US $9.50 |
||
|
92153C
|
92153C
92153-S092 BOLT |
92153-S092 |
from US $3.33 |
||
|
92153D
|
92153D
92153-S214 BOLT |
92153-S214 |
US $2 |
||
| replacement | |||||
|
92153D
|
92153D
92153-S570 BOLT |
92153-S570 |
US $3.37 |
||
|
92153E
|
92153E
92153-S253 BOLT |
92153-S253 |
US $2 |
||
| replacement | |||||
|
92153E
|
92153E
92153-S551 BOLT |
92153-S551 |
US $3.37 |
||
|
92153F
|
92153F
92153-S263 BOLT,6X39Bolt,6x39; |
92153-S263 |
US $3.64 |
||
|
92153G
|
92153G
92153-S290 BOLT,CYLINDER HEADBolt,cylinder head; |
92153-S290 |
US $11.90 |
||
|
92171
|
92171
92171-S030 CLAMP |
92171-S030 |
from US $3.01 |
||
|
92171A
|
92171A
92171-S090 CLAMP |
92171-S090 |
US $4.73 |
||
| replacement | |||||
|
92171A
|
92171A
92171-S172 CLAMP |
92171-S172 |
US $8.14 |
||
|
92200
|
92200
92200-S009 WASHER,10.5X19X2.0Washer,10.5x19x2.0; |
92200-S009 |
from US $1.43 |
||
|
92200A
|
92200A
92200-S150 WASHER |
92200-S150 |
US $7.29 |
||
|
92210
|
92210
92210-S015 NUT |
92210-S015 |
from US $3.64 |
||
| replacement | |||||
|
92210
|
92210
92210-S186 NUT |
92210-S186 |
US $7.33 |
||
